EVO® 6" Round Wall Mount Cylinder

General Illumination LED Downlight, Wall Wash, & Adjustable Cylinder

By Gotham Lighting

    WarmDimTunable WhiteLow UGR
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Downlight, open wall wash, corner wall wash, double wall wash, and lensed wall wash solutions
  • Beam angles: Very narrow, narrow, medium, medium wide, wide
  • Trim options: Cone
PERFORMANCE
Our high-performing cylinders provide the quality of light and consistency needed to efficiently create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-8,000 LM
  • Listings: Energy Star, CSA, Damp Location, Wet Location, IP66
  • Mainstream Dynamic Lighting: nTune and WarmDim
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify cylinders, we offer an ample array of mounting types, trims, sizes, and colors allowing for a complete custom design.
  • Colors: 20 standard colors and full breath of RAL custom colors

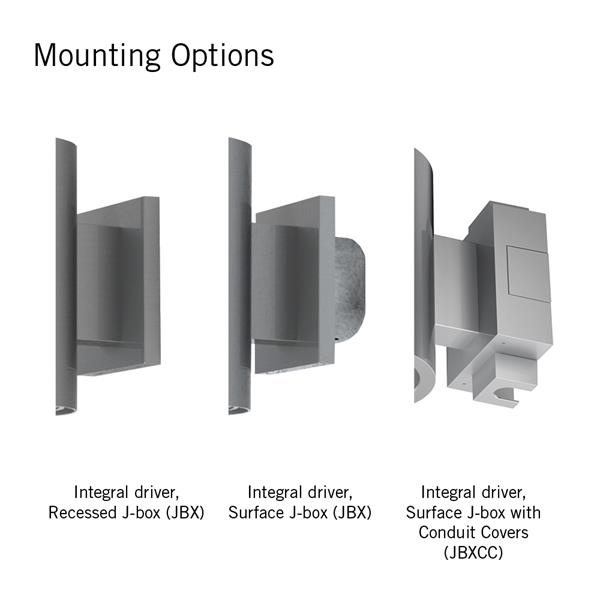

  • Mounting: Adjustable wall mount tilts up to +40º and down to -20º with +/-40º left/right rotation from vertical
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 1800 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 6000 LM, 8000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 80
Product Type Cylinder
Compliance Listing Low UGR
Environmental Listing IP66, Wet Location
Regulatory Listing CSA, UL
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Fixture Wattage 10.1, 10.7, 11.8, 12.4, 14.7, 15.7, 17.1, 20.6, 20.8, 22, 25.2, 26.3, 27.6, 3.25, 30.5, 31.2, 33.1, 35.5, 36.5, 40.5, 40.9, 41.7, 45.3, 47.1, 47.7, 48.8, 5.1, 50, 54, 59, 78, 8.66, 9.86
Voltage Rating 120, 120-277, 277, 347
Trim Style Cone, Corner Wallwash, Double Wallwash, Open, Single Wallwash
Color Almond, Black, Blue, Bronze, Clear, Gold, Gray, Green, Ivory, Pewter, Red, Silver, Wheat, White
Mounting Type Surface
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Special Applications
Function Adjustable, Downlight, Wall Wash
Product Series EVO
Series EVO6WTRC, EVO6WCWW, EVO6WCCWW, EVO6WCDWW, EVO6WC

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO6WC NTUNE.pdf EVO 6" Open Wal Mount Cylinder with nTune Tunable White & Warm Dimming 6/22/2020 View
    SPEC SHEET EVO6WC.pdf EVO 6" Open Wall Mount Cylinder 5/3/2023 View
    SPEC SHEET EVO6WCWW.pdf EVO 6" Open, Corner & Double Wall Wash Wall Mount Cylinder 5/3/2023 View
    SPEC SHEET EVO6WCWW-NTUNE.pdf EVO 6" Open, Corner & Double Wall Wash Wall Mount Cylinder with nTune Tunable White & Warm Dimming 4/29/2021 View
    SPEC SHEET EVO6WTRC NTUNE.pdf EVO 6" Open Adjustable Wall Mount Cylinder with nTune Tunable White & Warm Dimming 11/1/2022 View
    SPEC SHEET EVO6WTRC.pdf EVO 6" Open Adjustable Wall Mount Cylinder 10/31/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet Gotham Lighting EVO6 40K 80CRI.pdf EVO6 40K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 80CRI.pdf EVO6 35K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 90CRI.pdf EVO6 35K 90CRI 8/22/2022 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ53522 EVO_ICO 4-6IN CYL WALL_JBX_JBXCC_INSTALL.pdf EVO/ICO 4"/6" Wall Mount Cylinder 8/10/2022 View
    Installation Instructions CJ53523 EVO_ICO 4-6IN CYL DMX521_RDM.pdf EVO 4"/6", ICO 4" Cylinder with DMX/RDM 1/18/2021 View
    Installation Instructions CJ97039 EVO_ICO 4-6IN_WW TRIM_INSTALL_SUPPLEMENT.pdf EVO 4"/6" Open WallWash Cylinder Fixture Aiming 3/31/2020 View
