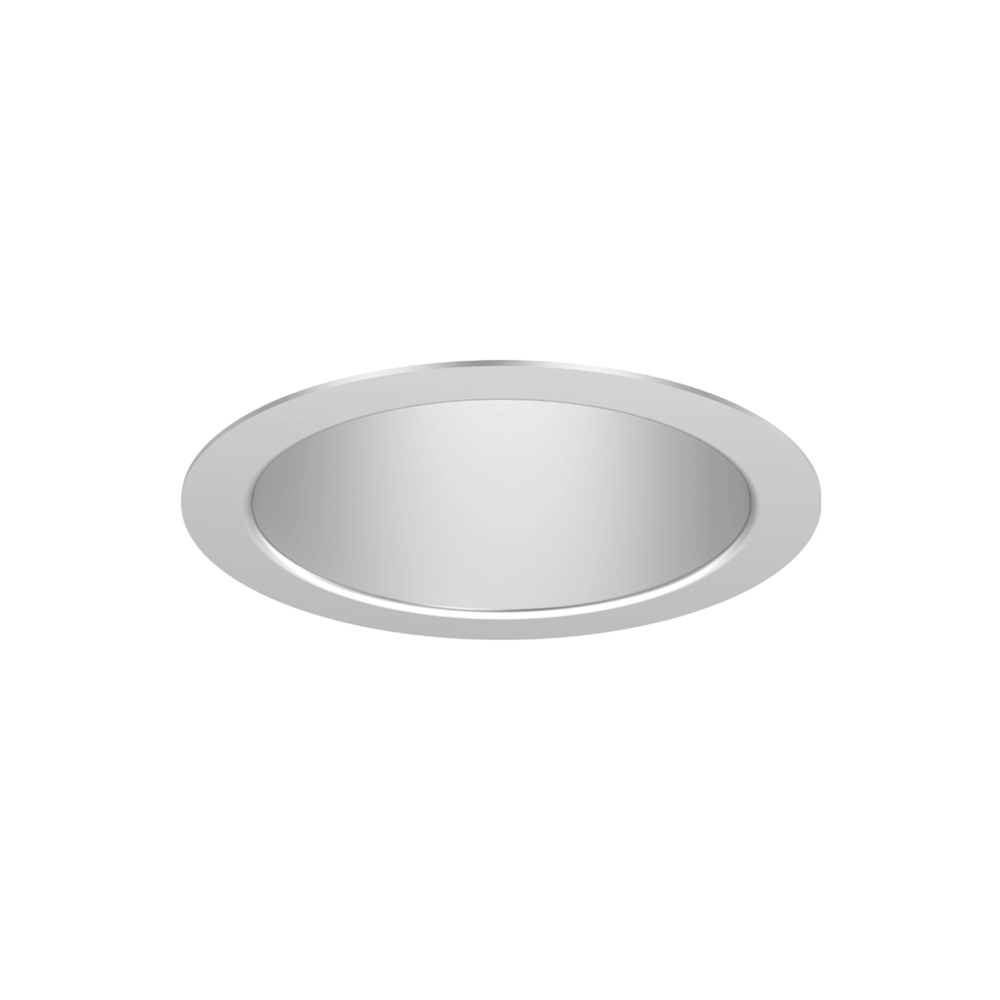

EVO® 4" Round Downlight

General Illumination LED Downlight

By Gotham Lighting

    WarmDimTunable WhiteColor ChangingEnergy Star®Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS

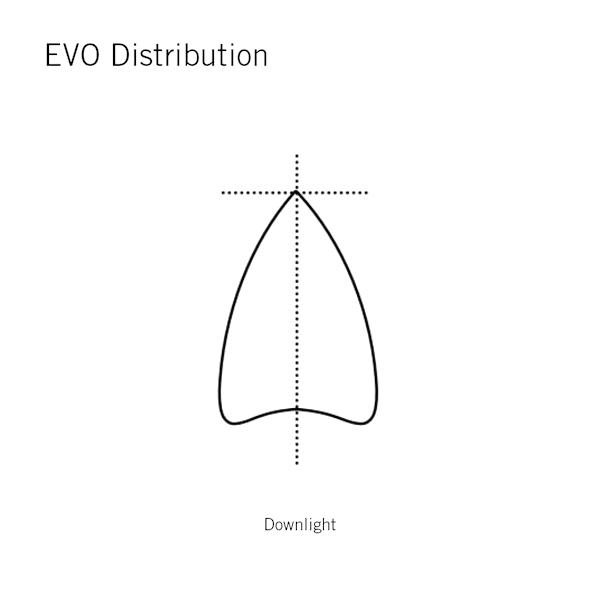

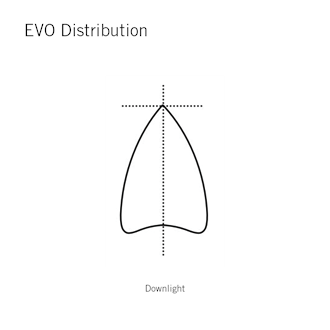

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Open downlight
  • Beam angles: Medium, medium wide, wide

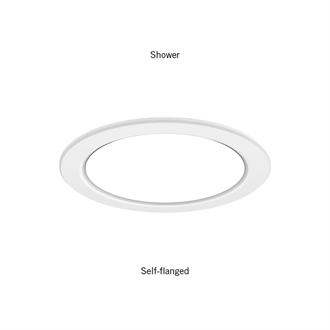

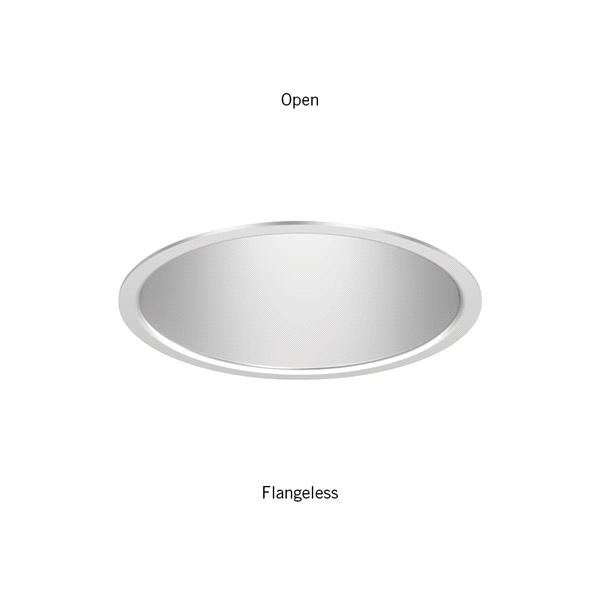

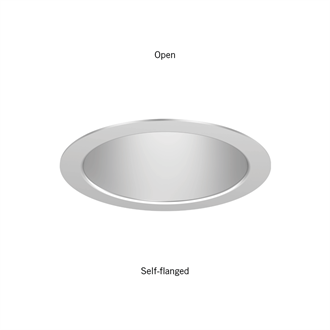

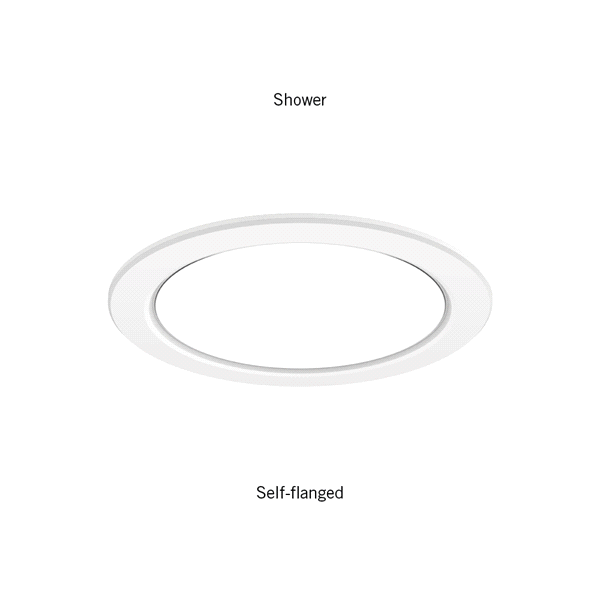

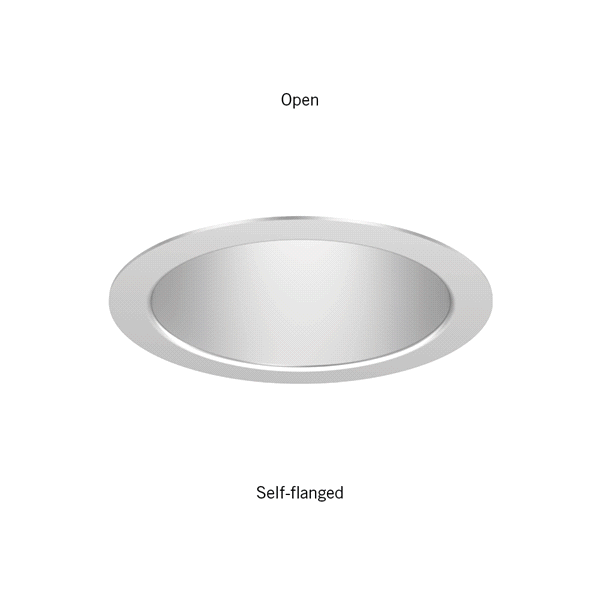

  • Trim options: Self-flanged, flangeless, shower
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-4,500 LM
  • Listings: Energy Star, CSA, Wet Location
  • Mainstream Dynamic Lighting: nTune, WarmDim, Architainment (RGBW)
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN

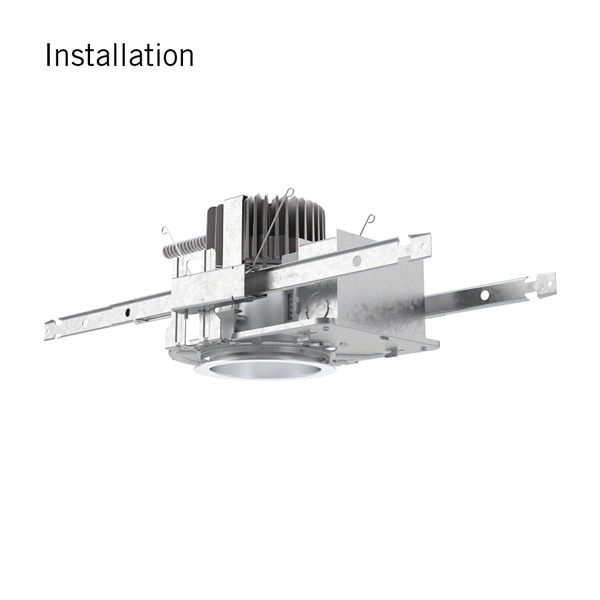

For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse, specular
  • Optics: Easy field-interchangeable optics
  • Trims: Easy field-interchangeable open trim
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings

EVO 4" Round Downlight is compatible with the DC2DC architecture
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Architainment Color, Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1200 LM, 1500 LM, 1800 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, RGBW, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX
Voltage Rating 120, 120-277, 277, 347, DC2DC 57VDC
Trim Style Cone, Lensed, Open
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Shower, Special Applications, Sports and Recreation
Function Downlight
Product Series EVO
Series EVO, EVO4, EVO4SH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO4.pdf EVO 4" Open Downlight 7/3/2023 View
    SPEC SHEET EVO4-NTUNE.pdf EVO 4" Open Downlight with nTune Tunable White & Warm Dimming 10/31/2022 View
    SPEC SHEET EVO4-NTUNE-DC2DC.pdf EVO 4" Open Downlight nTune Tunable White with DC2DC Architecture 4/17/2023 View
    SPEC SHEET EVO-4-OPEN-ARTC.pdf EVO 4" Open Downlight with Architainment RGBW Color 10/31/2022 View
    SPEC SHEET EVO4-Open-Downlight-4-Recessed-DC2DC.pdf EVO 4" Open Downlight DC2DC Architecture 4/24/2023 View
    SPEC SHEET EVO4SH.pdf EVO 4" Shower Downlight 11/17/2022 View
    SPEC SHEET EVO4SH-NTUNE.pdf EVO 4" Shower Downlight with nTune Tunable White & Warm Dimming 11/1/2022 View
    SPEC SHEET Gotham-EVO4SH-DC2DC.pdf General Illumination LED Downlight 7/7/2023 View
    SPEC SHEET Gotham-EVO4SH-NTUNE-DC2DC.pdf General Illumination LED Downlight 7/7/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 30K 90CRI.pdf EVO4 30K 90CRI 10/25/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 35K 90CRI.pdf EVO4 35K 90CRI 9/8/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4-EVO6 35K 80CRI.pdf EVO4 35K 80CRI 9/8/2022 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00376-003 - INSTALLATION INSTRUCTIONS, DC2DC UNIVERSAL SUPPLEMENTAL.pdf DC2DC Supplemental Installation Sheet 5/16/2023 View
    Installation Instructions CJ5200914 ICO4 Mudring Install.pdf EVO/ICO 4" Flangeless Mud Ring 2/10/2020 View
    Installation Instructions CJ5201007 EVO 4"/6"/8" Open, Wall Wash and Shower Trims 4/29/2019 View
    Installation Instructions CJ5201070 EVO Spec App Install Sheet.pdf EVO 4"/6" Surgical Suite Housing and Trim 4/24/2019 View
    Installation Instructions CTAEVO4-6.pdf EVO 4"/6" Ceiling Thickness Adap tor for Unibody frame 1/13/2022 View
    Installation Instructions EVO_RD_FRAME_INSTALL_CJ5201006_pdf.pdf EVO 4"/6"/8" Housing 10/18/2021 View
    User Manual DMX with RDM Manual.pdf DMX with RDM Manual 9/14/2021 View
