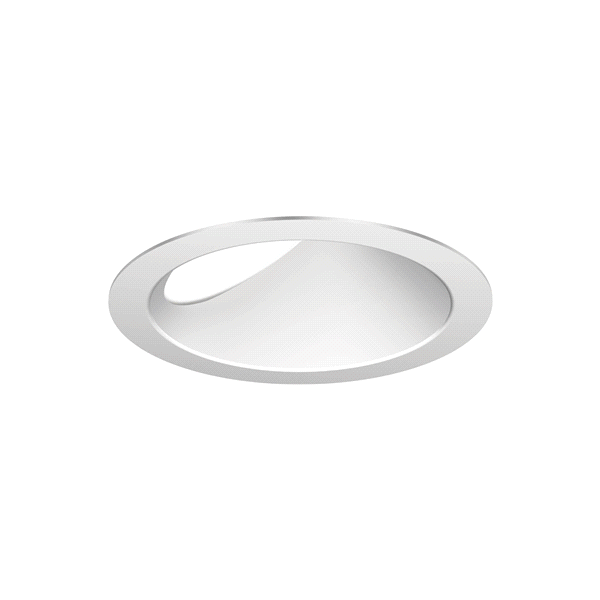

EVO® 4" Round Wall Wash

General Illumination LED Wall Wash

By Gotham Lighting

    WarmDimTunable WhiteColor ChangingEnergy Star®Buy America(n)
  • Overview
  • Specifications
OPTICS

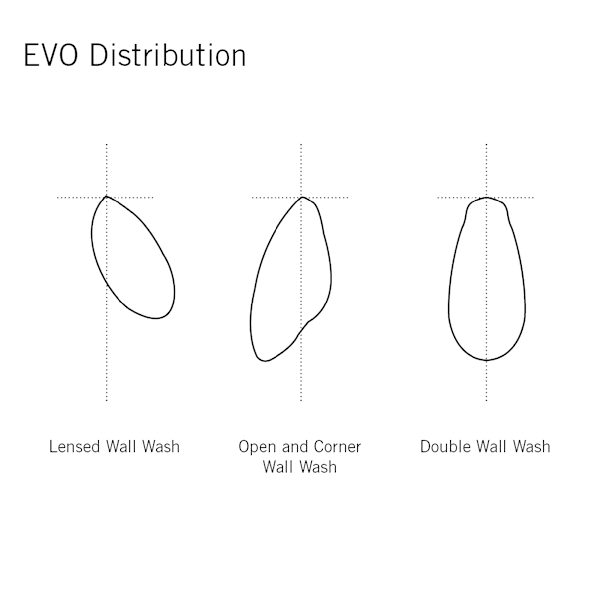

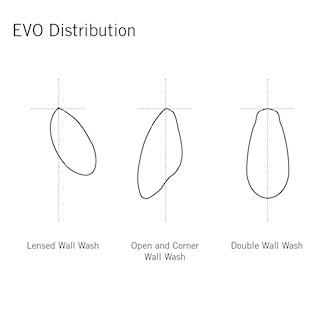

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°

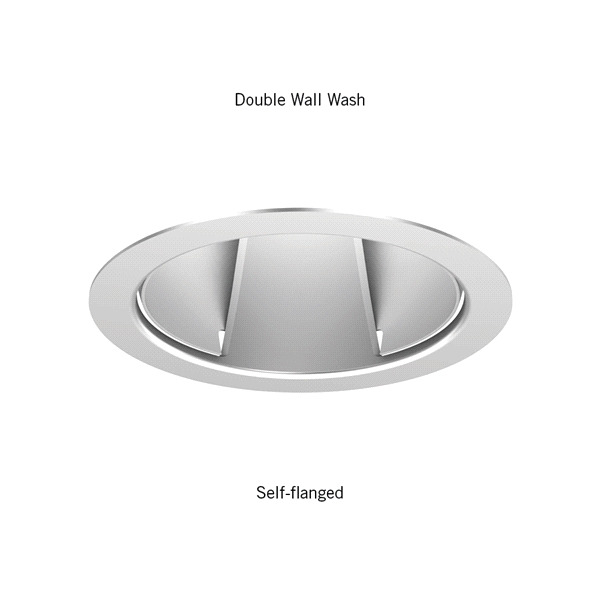

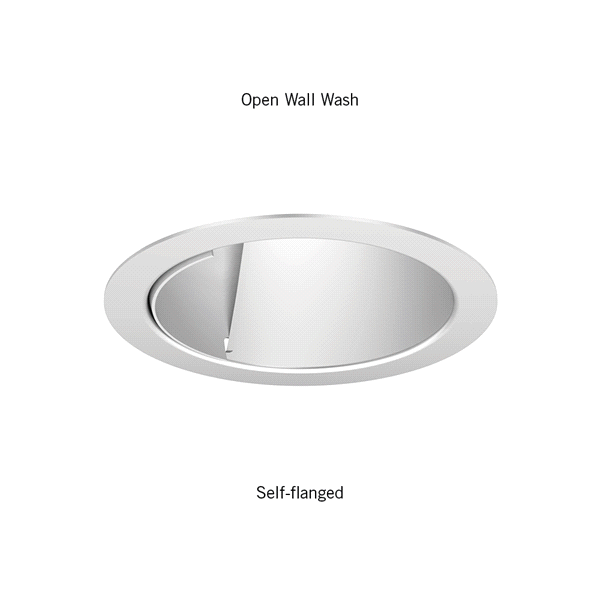

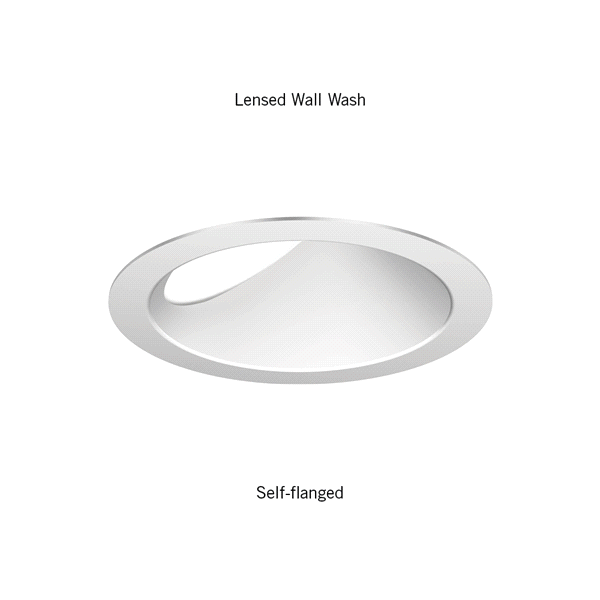

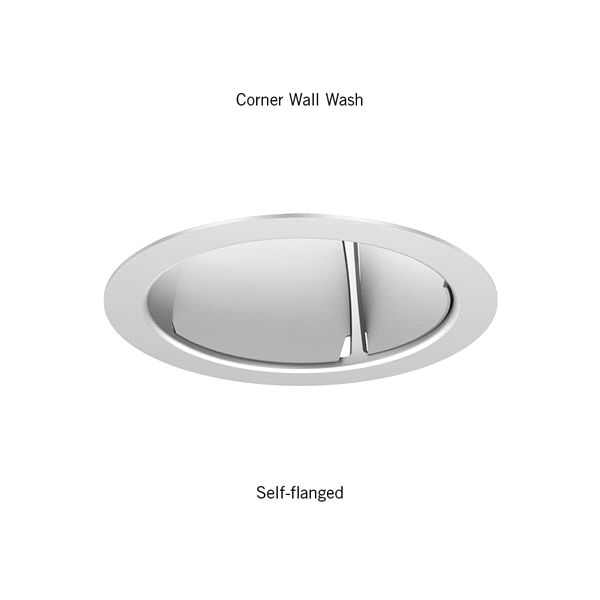

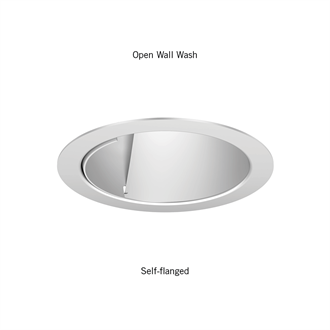

  • Functions: Open, corner, and double wall wash, and lensed wall wash solutions

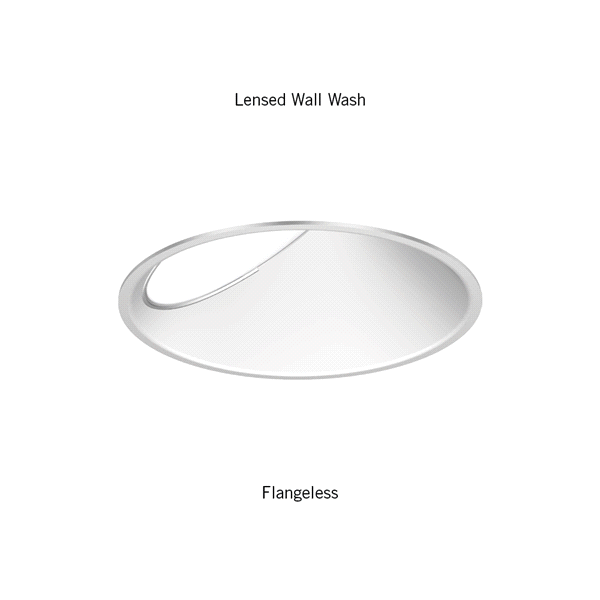

  • Trim options: Self-flanged, flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-4,500 LM
  • Listings: Energy Star, CSA, Wet Location
  • Mainstream Dynamic Lighting: nTune, WarmDim, Architainment (RGBW)
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse, specular
  • Optics: Easy field-interchangeable optics
  • Trims: Easy field-interchangeable open trim
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Architainment Color, Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1200 LM, 1500 LM, 1800 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, RGBW, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 120-277, 277, 347
Trim Style Corner Wallwash, Double Wallwash, Single Wallwash
Color Gold, Pewter, Wheat, White, Black, Clear
Mounting Type Recessed
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Wall Wash
Product Series EVO
Series EVO, EVO4LW, EVO4DWW, EVO4CWW, EVO4WW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO4LW.pdf EVO 4" Lensed Wallwash 5/11/2022 View
    SPEC SHEET EVO4LW-NTUNE.pdf EVO 4" Lensed Wall Wash with nTune Tunable White and Warm Dimming 4/22/2021 View
    SPEC SHEET EVO4WW.pdf EVO 4" Open, Corner, & Double Wall Wash 5/11/2022 View
    SPEC SHEET EVO4WW-NTUNE.pdf EVO 4" Open, Corner, & Double Wall Wash with nTune Tunable White & Warm Dimming 4/29/2021 View
    SPEC SHEET EVO-WW-4-ARTC.pdf EVO 4" Open, Corner & Double Wall Wash with Architainment RGBW Color 5/6/2021 View
    SPEC SHEET EVO-WW-4-TUWH.pdf EVO 4" Open, Corner & Double Wall Wash with Tunable White 5/6/2021 View
    SPEC SHEET EVO-WW-4-WDIM.pdf EVO 4" Open, Corner & Double Wall Wash with Warm Dimming 5/6/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5200914 ICO4 Mudring Install.pdf EVO/ICO 4" Flangeless Mud Ring 2/10/2020 View
    Installation Instructions CJ5201007 EVO 4"/6"/8" Open, Wall Wash and Shower Trims 4/29/2019 View
    Installation Instructions CTAEVO4-6.pdf EVO 4"/6" Ceiling Thickness Adap tor for Unibody frame 1/13/2022 View

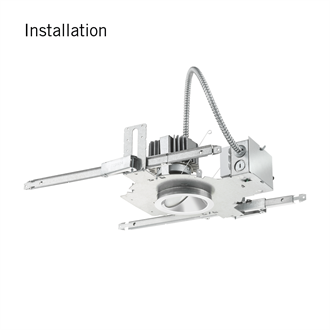

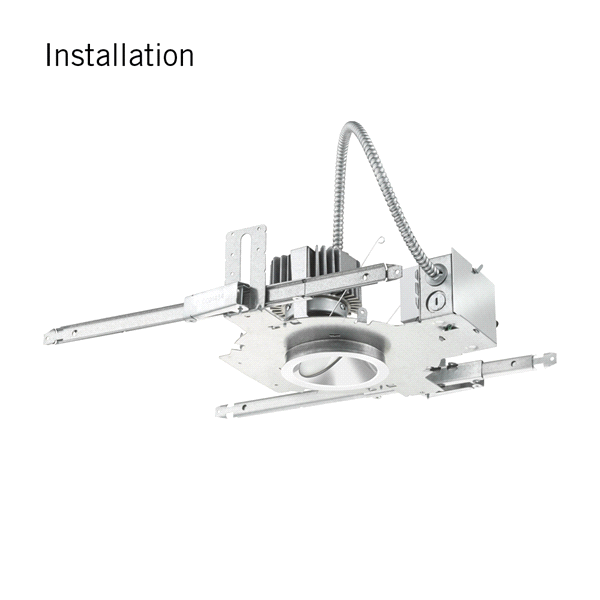

    Installation Instructions EVO_RD_FRAME_INSTALL_CJ5201006_pdf.pdf EVO 4"/6"/8" Housing 10/18/2021 View
    User Manual DMX with RDM Manual.pdf DMX with RDM Manual 9/14/2021 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet EVO Downlight Sell Sheet_0519_web.pdf EVO Open and Wallwash Sell Sheet 9/23/2019 View
    Sell Sheet EVO LW Sell Sheet_0519_lo.pdf EVO Lensed Wallwash Sell Sheet 9/23/2019 View
