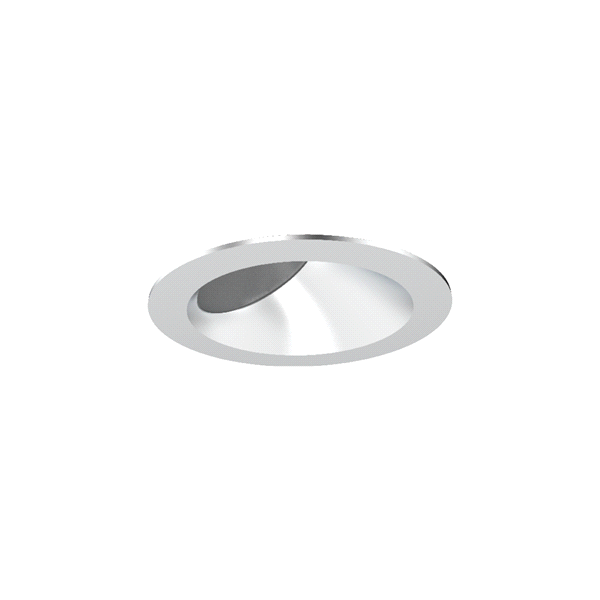

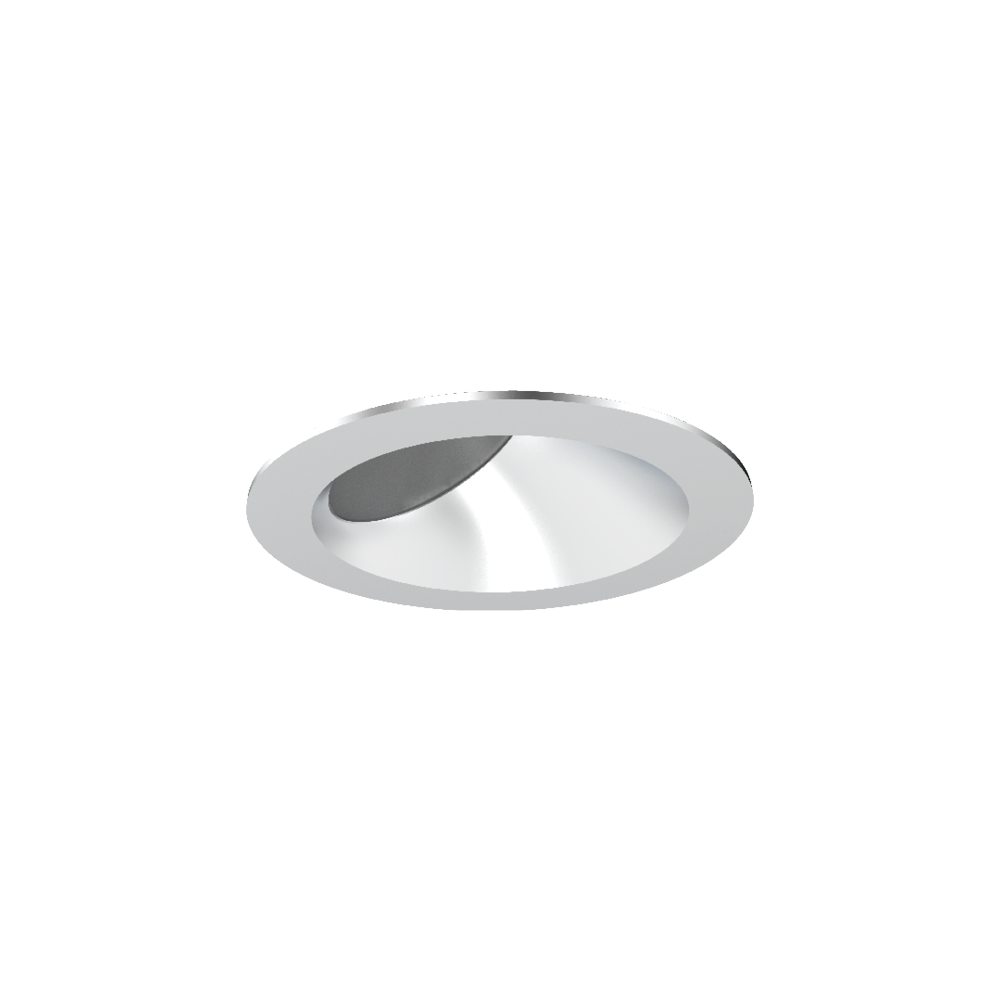

EVO® 2" Round Wall Wash

General Illumination LED Wall Wash

By Gotham Lighting

    Energy Star®Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°

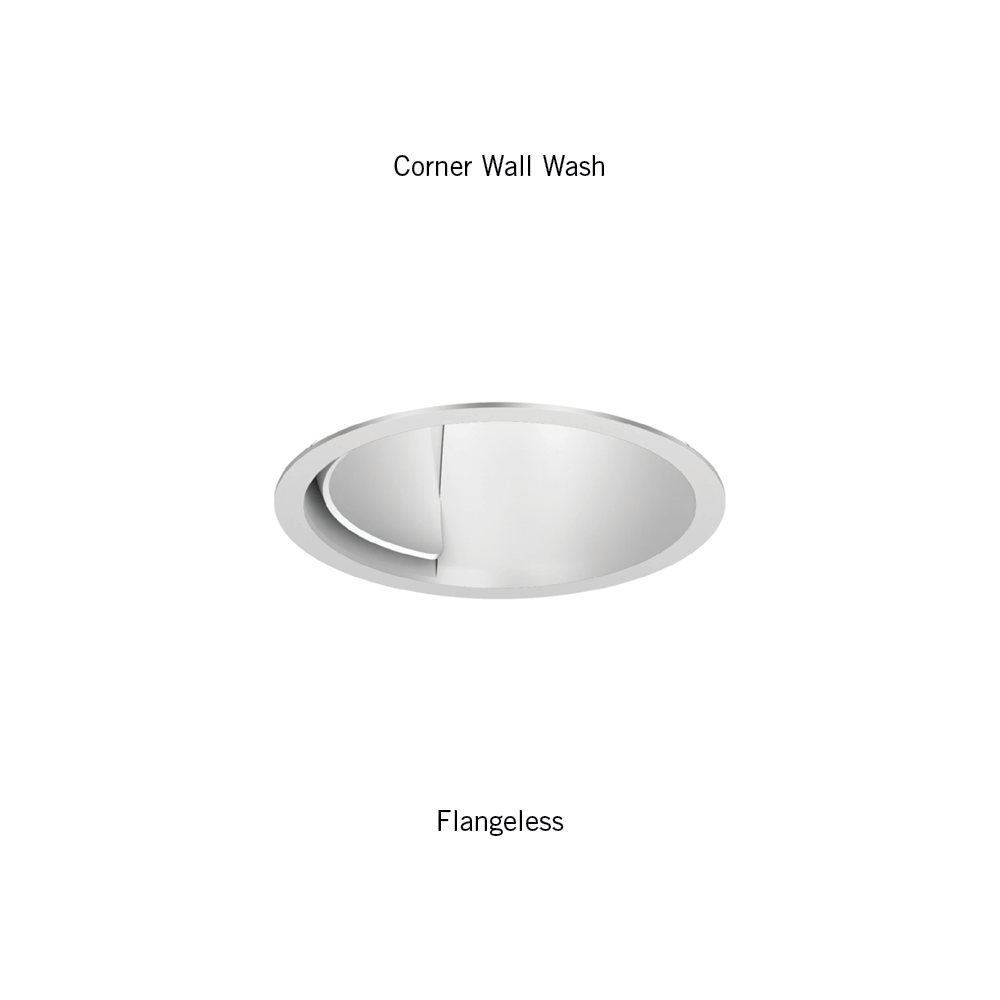

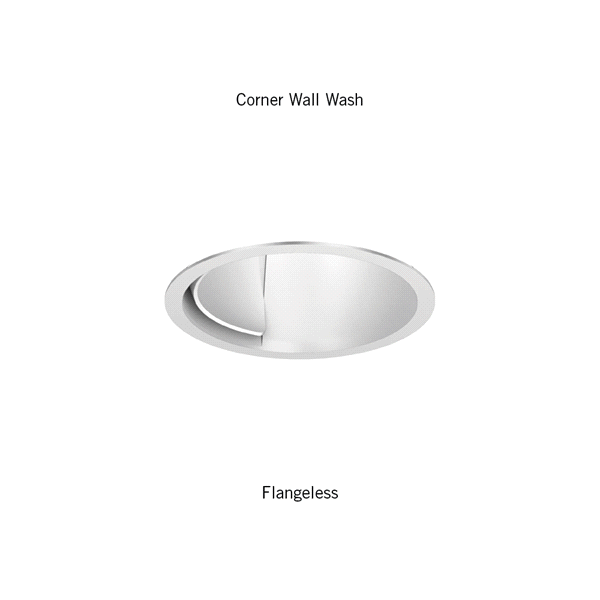

  • Functions: Open, corner, and double wall wash, and lensed wall wash solutions

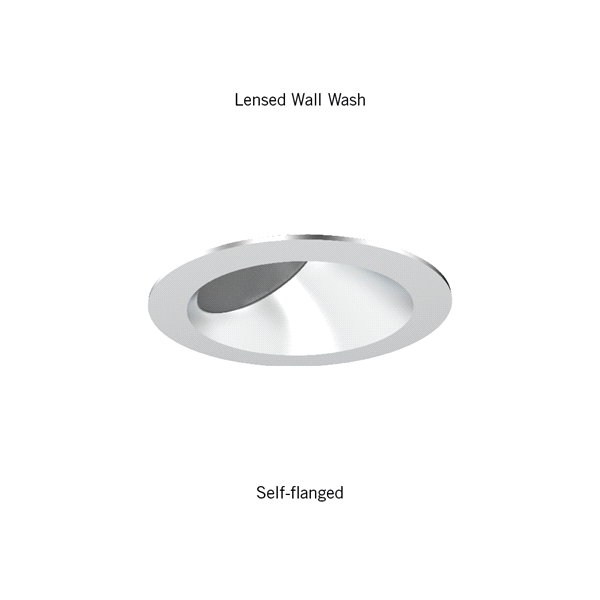

  • Trim options: Self-flanged, flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-1,500 LM
  • Listings: Energy Star, CSA, Damp Location, Wet Location
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular, matte diffuse
  • Optics: Easy field-interchangeable optics
  • Trims: Minimal 3/8” trim flange
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 2 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 85, 90
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing IC, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, Digital, Reverse Phase
Fixture Wattage 12.7, 21.2, 3.4, 6.3, 9.7
Voltage Rating 120, 120-277, 277
Trim Style Corner Wallwash, Double Wallwash, Lensed, Single Wallwash
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Retail, Education, Government, Hospitality, House of Worship, Offices & Banks, Residential
Function Wall Wash
Product Series EVO
Series EVO2WW, EVO2DWW, EVO2CWW, EVO2LW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO2LW.pdf EVO 2" Lensed Wall Wash 4/26/2023 View
    SPEC SHEET EVO2WW.pdf EVO 2" Open, Corner, & Double Wall Wash 4/26/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ52164 2" Optics.pdf EVO & ICO 2" Optic Installation/Replacement Instructions 8/9/2022 View
    Installation Instructions CJ52308-NOM.pdf EVO/ICO 2" Housing - English/Spanish 8/10/2022 View
    Installation Instructions EVO2 & ICO2 Installation Instructions CJ52308.pdf EVO/ICO 2" Housing 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Mud Ring-Flangeless Installation Instructions CJ52316.pdf EVO/ICO 2" Flangeless Mud Ring 2/27/2020 View
    Installation Instructions EVO2 & ICO2 NCH,CP,ICAT Installation Instructions CJ52315.pdf EVO/ICO 2" Structural Reinforcement Pan, Chicago Plenum, and IC/Airtight Housings 3/27/2020 View
    Installation Instructions EVO2 & ICO2 Trim Installation Instructions CJ52310.pdf EVO/ICO 2" Trim 2/27/2020 View
    Installation Instructions RK Template_Gotham_EVO2 WW DLT.pdf EVO2 Wall Wash Round & EVO2 Lensed Wall Wash Round & Square Replacement Kits 5/2/2023 View
