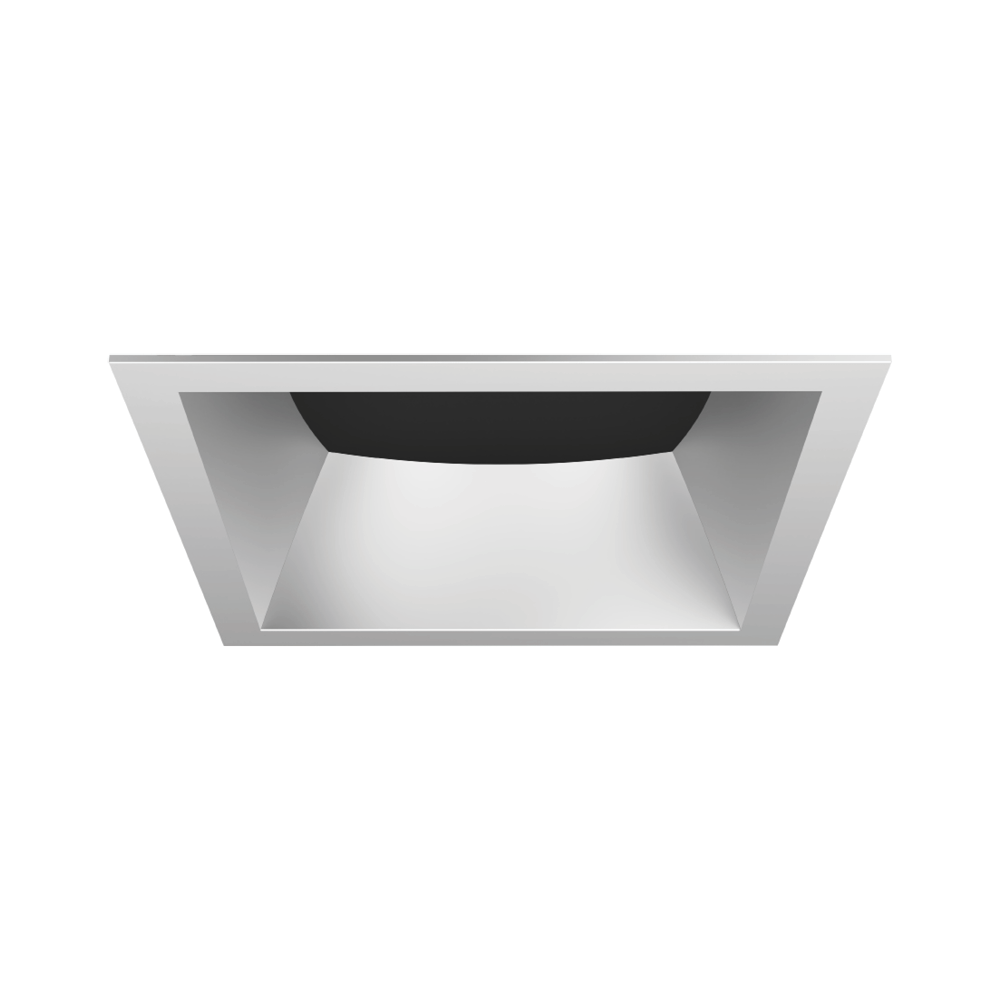

Incito™ 6" Square Adjustable

High Center Beam LED Adjustable

By Gotham Lighting

    Low UGR
  • Overview
  • Specifications
OPTICS

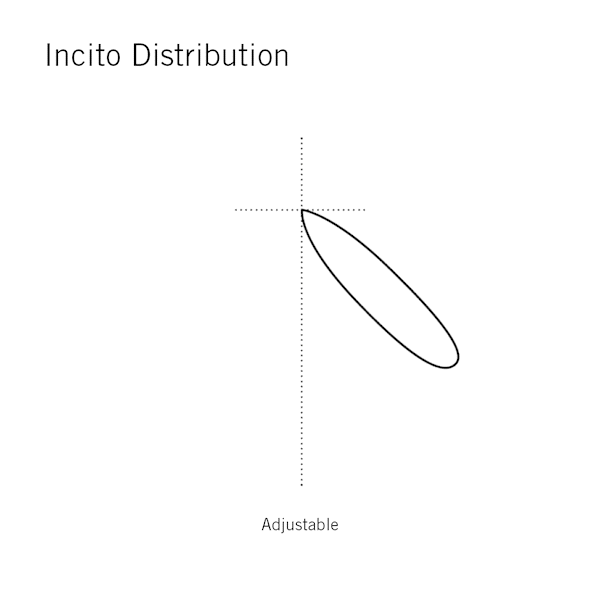

Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
  • Functions: Adjustable solution
  • Beam angles: Cut for angles 0 to 40°, ranging from 20° to 55°

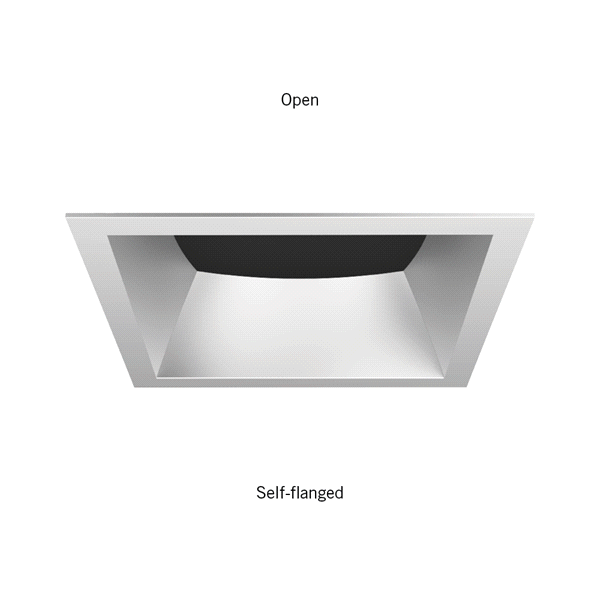

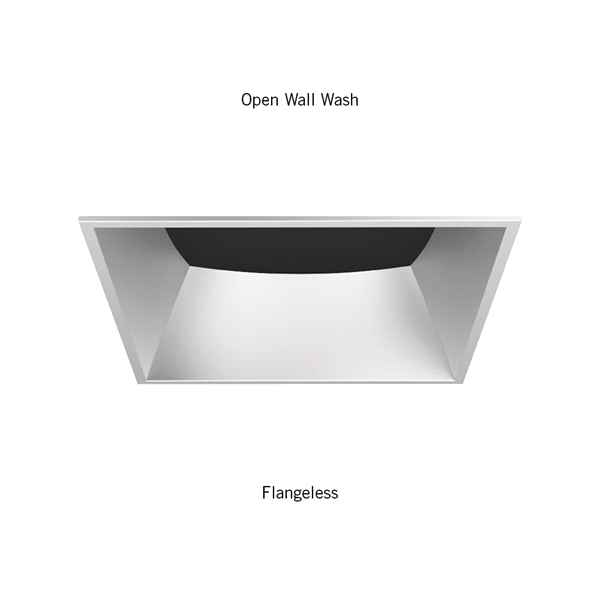

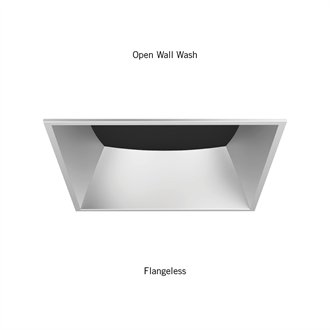

  • Trim options: Self-flanged or flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 2,500-8,500 LM
  • Listings: CSA, Damp Location, Buy American
  • Driver capabilities: Up to 5 different driver options from 0-10v to DMX
  • Controls: nLight® wired lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular and matte diffuse
  • Trims: Interchangeable open trim

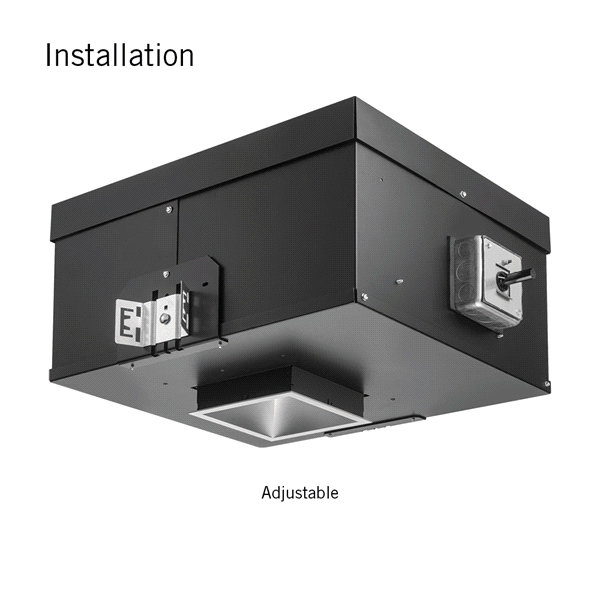

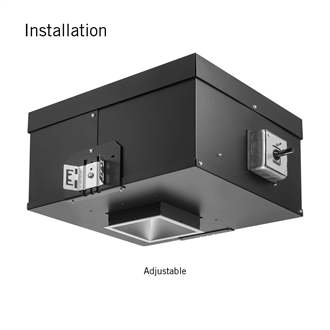

  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 6 IN
Shape Square
Light Source LED - Static
Lumens 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 5500 LM, 6000 LM, 6500 LM, 7000 LM, 7500 LM, 8000 LM, 8500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 90
Product Type Downlight
Compliance Listing Low UGR
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, DMX
Voltage Rating 120, 277
Trim Style Angle-Cut, Open
Color Black, Clear, Pewter, Wheat, White
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Adjustable
Product Series Incito
Series ICO

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ICO-SQ-6-ADJ Incito 6" Square Open Adjustable 11/9/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ60019 INSTRUCTION SHEET - REV B ICO 6" Adjustable Trim View
    Installation Instructions ICO 6 ADJ Housing Instruction Sheet ICO 6" Adjustable Housing View
    User Manual DMX with RDM Manual.pdf DMX with RDM Manual 9/14/2021 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures EVO_vs_Incito Comparison Guide View
    Brochures Incito Brochure Web IncitoBrochureWeb View
    Sell Sheet 6in_adJ Incito 6 in Sell Sheet View
    Sell Sheet Incito 6" Sell Sheet Incito 6" Sell Sheet View
    Sell Sheet Incito Square Sell Sheet Incito Square Sell Sheet View
