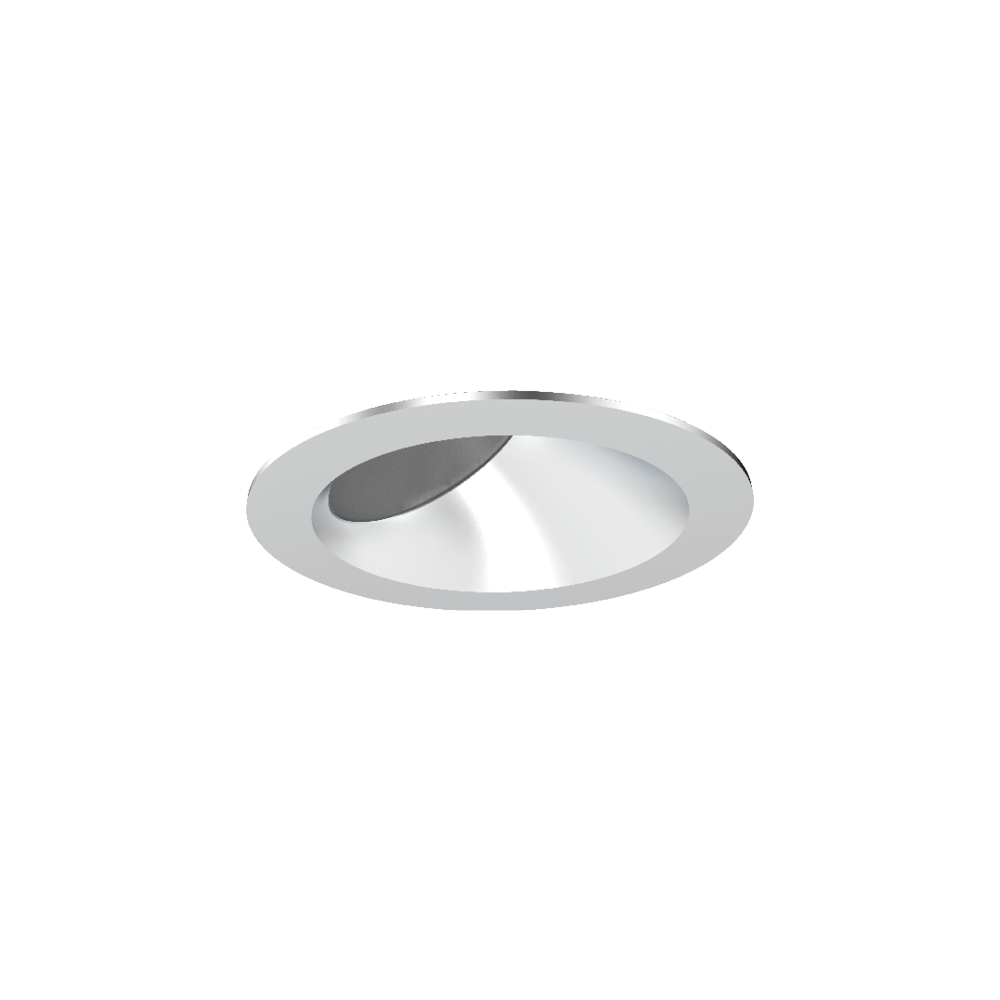

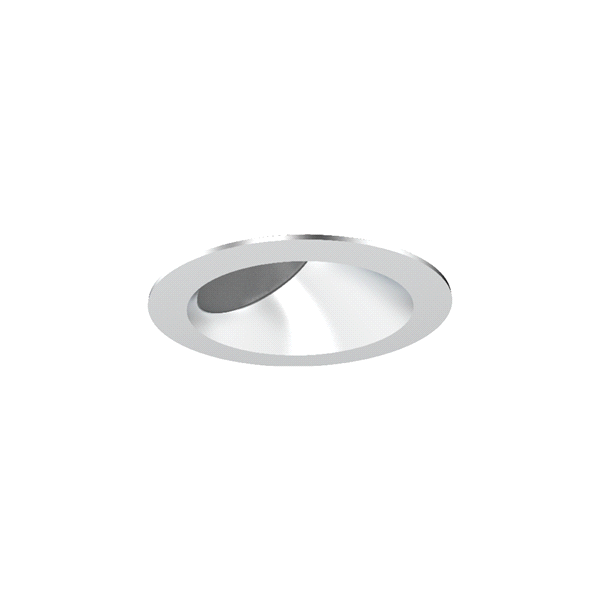

Incito™ 2" Round Wall Wash

High Center Beam LED Wall Wash

By Gotham Lighting

    Energy Star®CA Title 24/JA8Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS

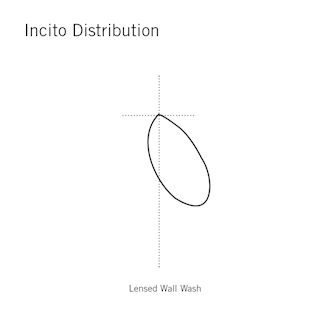

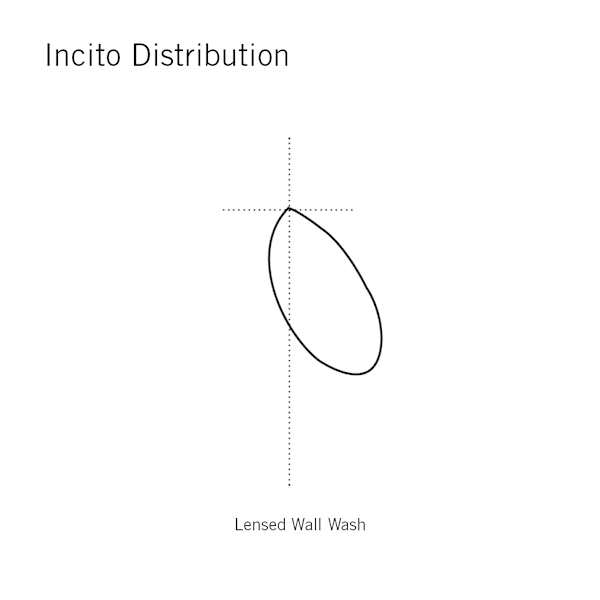

Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.

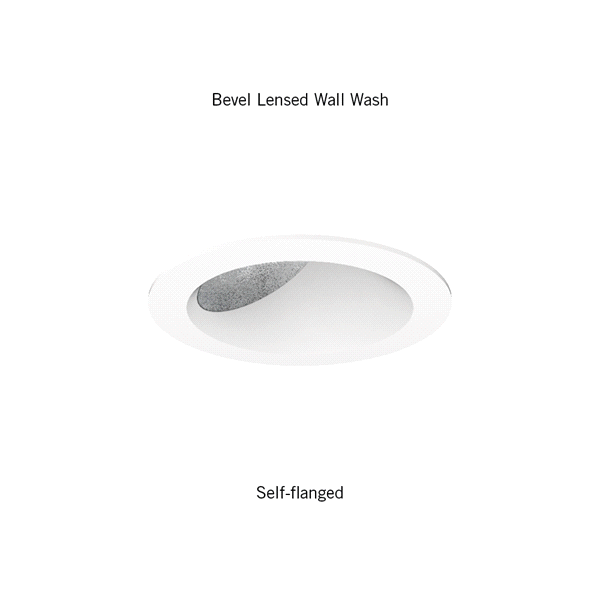

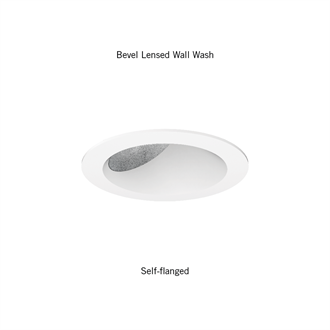

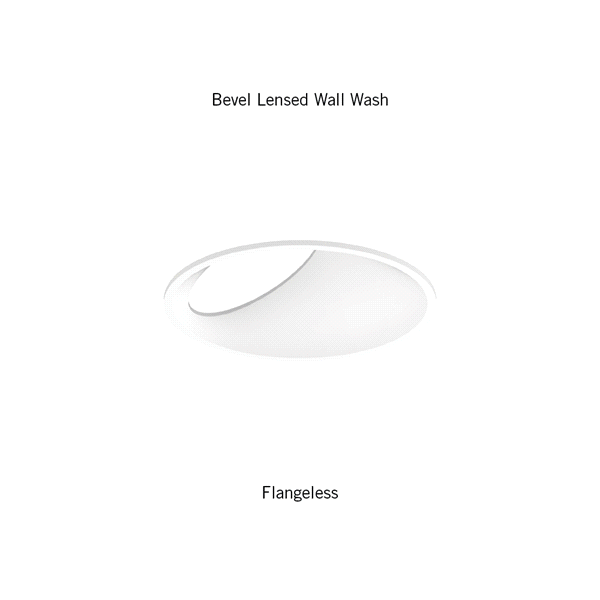

  • Functions: Lensed and bevel lensed wall wash solutions

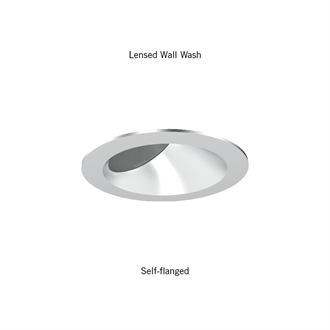

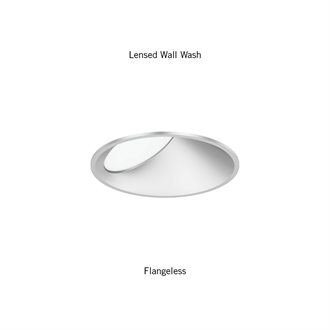

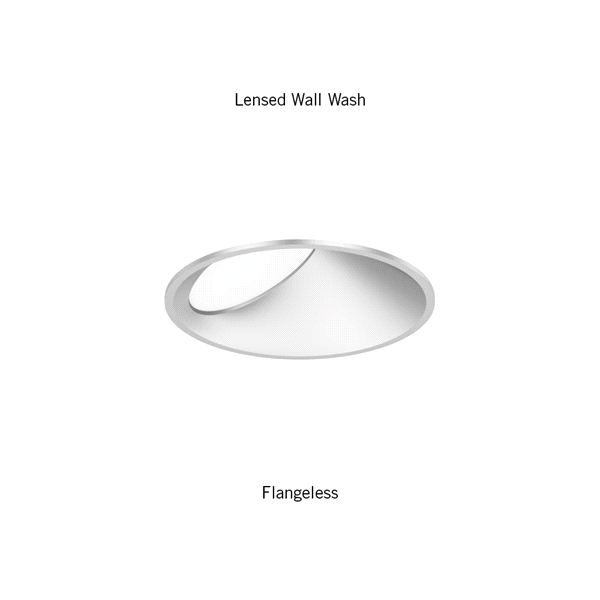

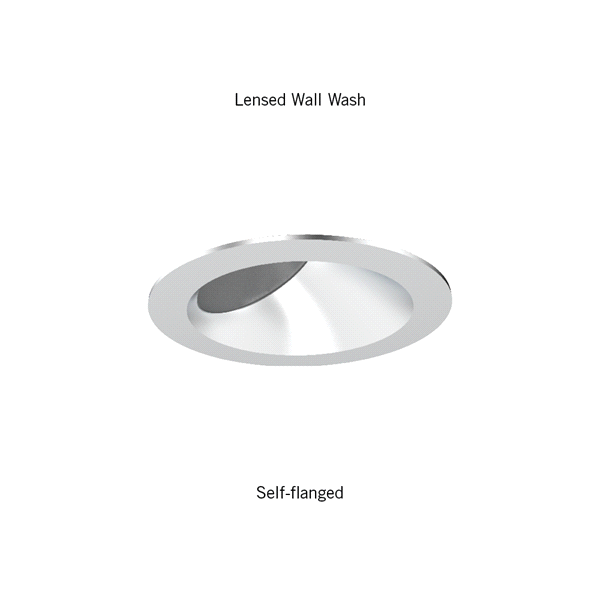

  • Trim options: Self-flanged or flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-1,500 LM
  • Listings: Energy Star, UL, Wet Location, IC Rated, Buy American
  • Driver capabilities: Up to 2 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular and matte diffuse
  • Optics: Easy field-interchangeable optics
  • Trims: Minimal 3/8” trim flange
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 2 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Downlight
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8, Low UGR
Environmental Listing IC, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, Digital, Reverse Phase
Fixture Wattage 12, 19.8, 3.1, 5.6, 8.7
Voltage Rating 120, 120-277, 277
Trim Style Bevel, Lensed, Single Wallwash
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Wall Wash
Product Series Incito
Series ICO2LW, ICO2BEVLW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ICO2BEVLW.pdf ICO 2" Lensed Bevel Wall Wash 4/25/2023 View
    SPEC SHEET ICO2LW.pdf ICO 2" Lensed Wall Wash 4/25/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting ICO2 35K 90CRI.pdf ICO2 35K 90CRI 1/13/2023 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ52164 2" Optics.pdf EVO & ICO 2" Optic Installation/Replacement Instructions 8/9/2022 View
    Installation Instructions CJ52308-NOM.pdf EVO/ICO 2" Housing - English/Spanish 8/10/2022 View
    Installation Instructions EVO2 & ICO2 Installation Instructions CJ52308.pdf EVO/ICO 2" Housing 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Mud Ring-Flangeless Installation Instructions CJ52316.pdf EVO/ICO 2" Flangeless Mud Ring 2/27/2020 View
    Installation Instructions EVO2 & ICO2 NCH,CP,ICAT Installation Instructions CJ52315.pdf EVO/ICO 2" Structural Reinforcement Pan, Chicago Plenum, and IC/Airtight Housings 3/27/2020 View
    Installation Instructions EVO2 & ICO2 Trim Installation Instructions CJ52310.pdf EVO/ICO 2" Trim 2/27/2020 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Parts RK Template_Gotham_ICO2LW DLT.pdf ICO2 Round & Square Lensed Wall Wash Replacement Kits 9/22/2023 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Incito-2-inch-brochure.pdf Incito 2" Downlight and Cylinder Brochure View
    Sell Sheet Gotham_Incito2_WallwashSellSheet0615_FINAL_r1.pdf Incito 2 in Wallwash Sell Sheet View
