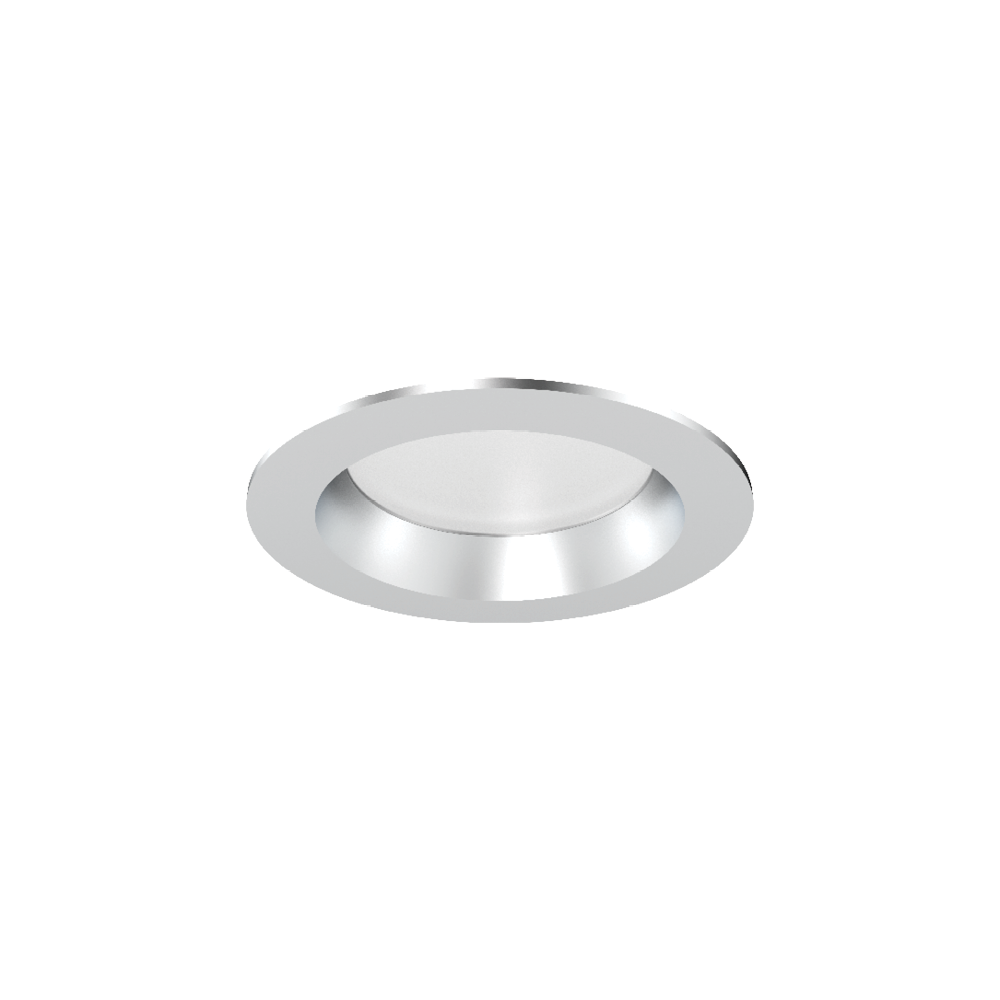

Incito™ 2" Round Shower & Steam Room

High Center Beam LED Downlight & Adjustable for Shower and Steam Room

By Gotham Lighting

    Energy Star®CA Title 24/JA8Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS

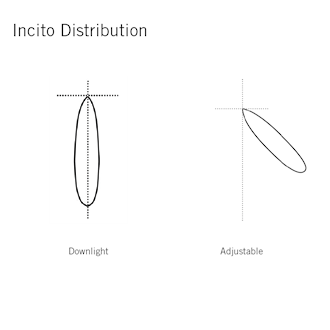

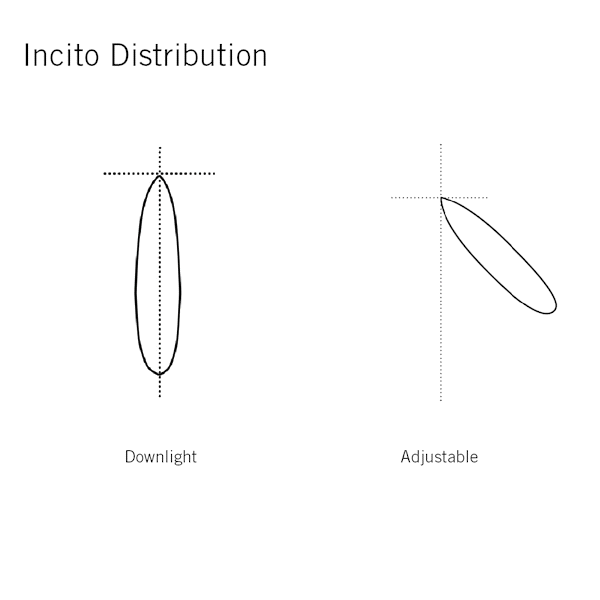

Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.

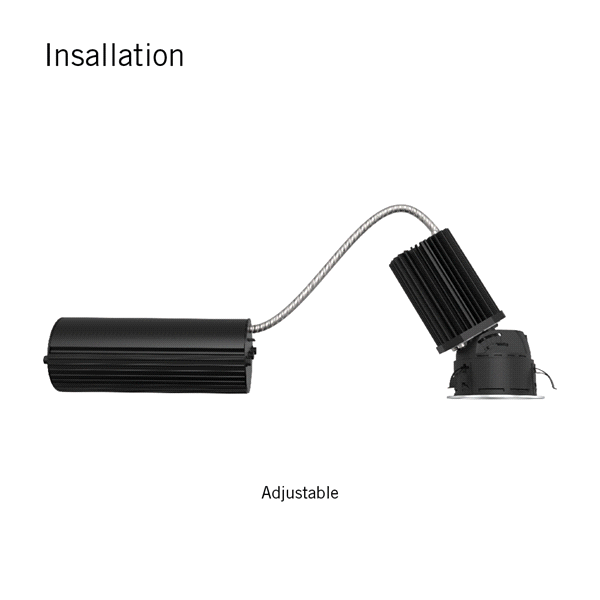

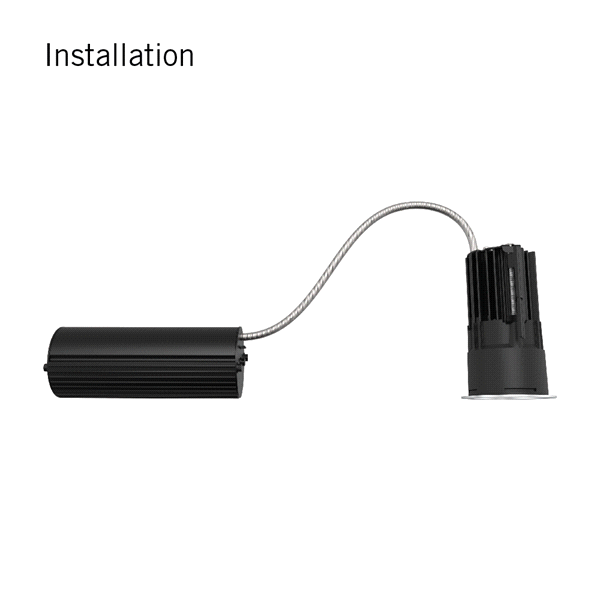

  • Functions: Open downlight and adjustable solution
  • Beam angles: Ranging from 15° to 45°
  • Lens options: Solite pattern lens, light frost lens, clear
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-2,000 LM
  • Listings: Energy Star, UL, Wet Location, IC Rated, Buy American
  • Driver capabilities: Up to 2 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular and matte diffuse
  • Optics: Easy field-interchangeable optics

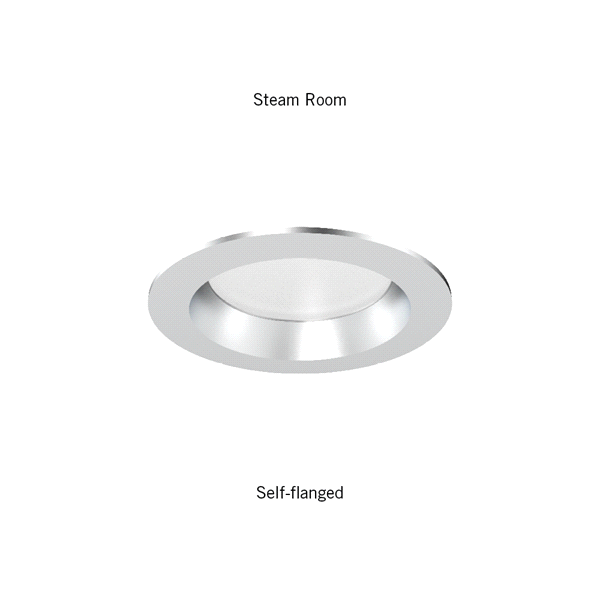

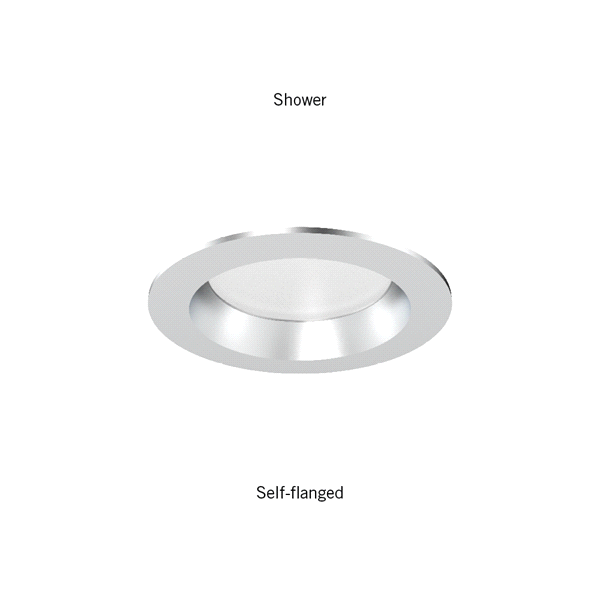

  • Trims: Minimal 3/8” trim flange
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 2 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Downlight
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8, Low UGR
Environmental Listing IP66, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, Digital, Reverse Phase
Voltage Rating 120, 120-277, 277
Trim Style Angle-Cut, Bevel, Cone, Hyperbolic, Lensed, Pinhole
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Healthcare, Natatorium, Residential, Shower, Special Applications, Sports and Recreation, Steam Room
Function Adjustable, Downlight
Product Series Incito
Series ICO2SH, ICO2SHADJ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ICO2SH STRM.pdf ICO 2" Steam Room Downlight 4/25/2023 View
    SPEC SHEET ICO2SH.pdf ICO 2" Shower Downlight 4/25/2023 View
    SPEC SHEET ICO2SHADJ STRM.pdf ICO 2" Steam Room Adjustable 4/25/2023 View
    SPEC SHEET ICO2SHADJ.pdf ICO 2" Shower Adjustable 4/25/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting ICO2 35K 90CRI.pdf ICO2 35K 90CRI 1/13/2023 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ52164 2" Optics.pdf EVO & ICO 2" Optic Installation/Replacement Instructions 8/9/2022 View
    Installation Instructions CJ52308-NOM.pdf EVO/ICO 2" Housing - English/Spanish 8/10/2022 View
    Installation Instructions EVO2 & ICO2 Installation Instructions CJ52308.pdf EVO/ICO 2" Housing 8/9/2022 View
    Installation Instructions EVO2 & ICO2 NCH,CP,ICAT Installation Instructions CJ52315.pdf EVO/ICO 2" Structural Reinforcement Pan, Chicago Plenum, and IC/Airtight Housings 3/27/2020 View
    Installation Instructions ICO2 Shower Trim Installation Instructions CJ52307.pdf ICO 2" Shower Trim 2/27/2020 View
