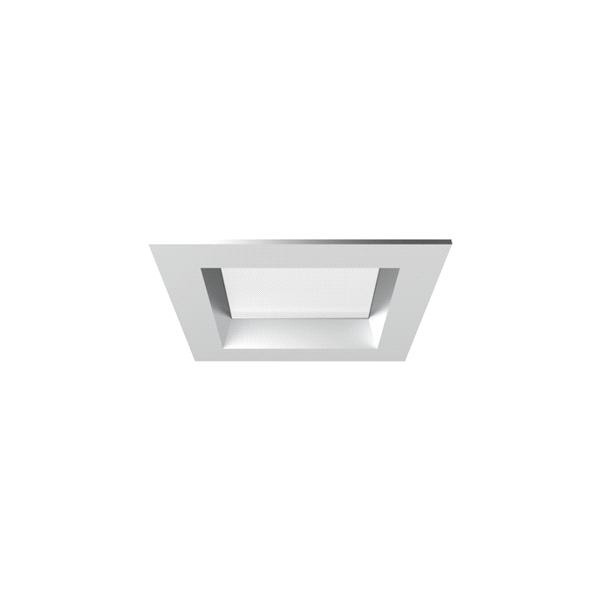

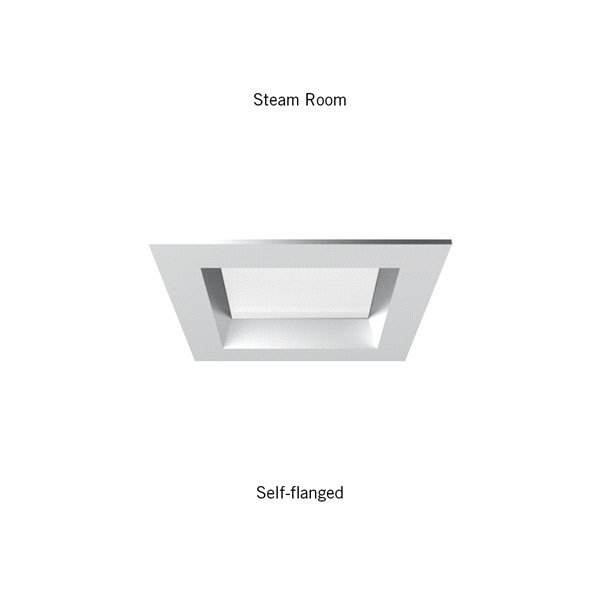

Incito™ 2" Square Shower & Steam Room

High Center Beam LED Downlight & Adjustable for Shower and Steam Room

By Gotham Lighting

    Energy Star®CA Title 24/JA8Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 2 IN
Shape Square
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 90
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®, JA8, Low UGR
Environmental Listing IC, IP66, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, Digital, Reverse Phase
Voltage Rating 120, 120-277, 277
Trim Style Angle-Cut, Lensed, Open
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Healthcare, Natatorium, Residential, Shower, Special Applications, Sports and Recreation, Steam Room
Function Adjustable, Downlight
Product Series Incito
Series ICO2SQSH, ICO2SQSHADJ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ICO2SQSH STRM.pdf ICO 2" Steam Room Downlight 11/8/2022 View
    Spec Sheet ICO2SQSH.pdf ICO 2" Shower Downlight 11/8/2022 View
    Spec Sheet ICO2SQSHADJ STRM.pdf ICO 2" Steam Room Adjustable 11/8/2022 View
    Spec Sheet ICO2SQSHADJ.pdf ICO 2" Shower Adjustable 11/8/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ52164 2" Optics.pdf EVO & ICO 2" Optic Installation/Replacement Instructions 8/9/2022 View
    Installation Instructions CJ52308-NOM.pdf EVO/ICO 2" Housing - English/Spanish 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Installation Instructions CJ52308.pdf EVO/ICO 2" Housing 8/9/2022 View
    Installation Instructions EVO2 & ICO2 NCH,CP,ICAT Installation Instructions CJ52315.pdf EVO/ICO 2" Structural Reinforcement Pan, Chicago Plenum, and IC/Airtight Housings 3/26/2020 View
    Installation Instructions ICO2 Shower Trim Installation Instructions CJ52307.pdf ICO 2" Shower Trim 2/26/2020 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet RK Template_Gotham_ICO2 DLT.pdf ICO2 Round and Square Replacement Kits 1/19/2023 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Incito-2-inch-brochure.pdf Incito 2" Downlight and Cylinder Brochure 1/4/2017 View
