Aperture Size | 4 IN |
Shape | Square |
Light Source | LED - Static |
Lumens | 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM |
CCT / LED Color | 2700 K, 3000 K, 3500 K, 4000 K, 5000 K |
CRI | 80 |
Product Type | Downlight |
Compliance Listing | BAA, Chicago Plenum, ENERGY STAR® |
Environmental Listing | IC, Wet Location |
Regulatory Listing | CSA |
Dimming Protocol | 0-10V, DALI, Digital, DMX, Forward Phase |
Voltage Rating | 120, 277, 347 |

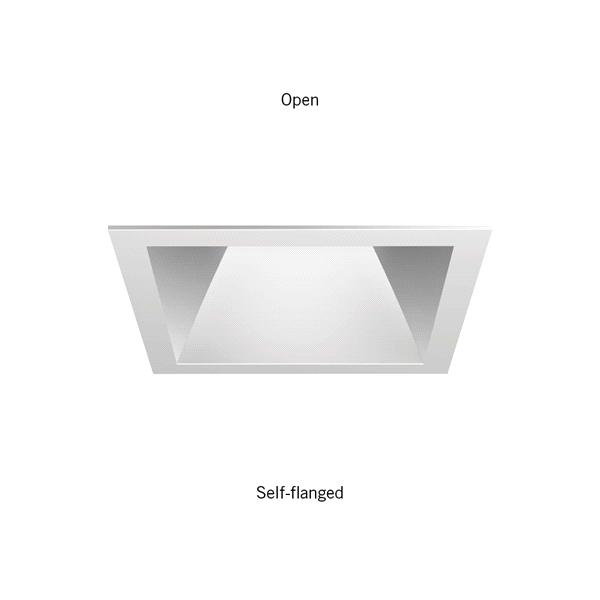

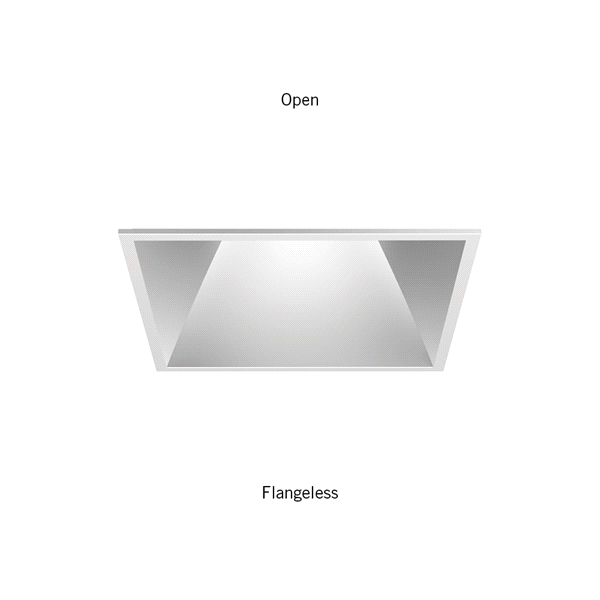

Trim Style | Open |

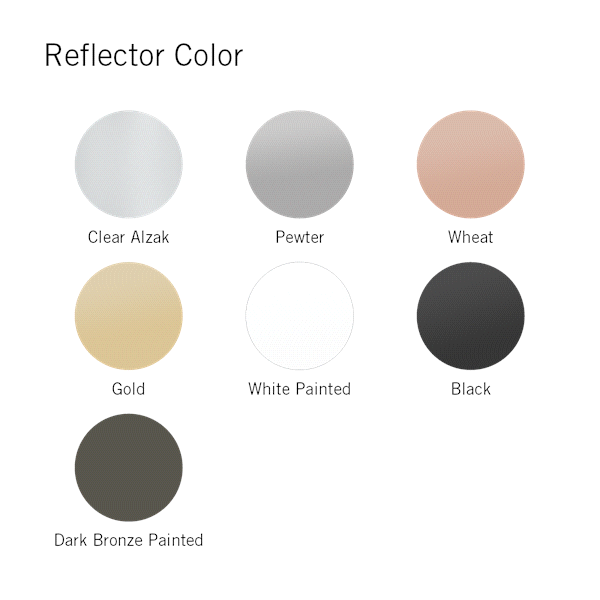

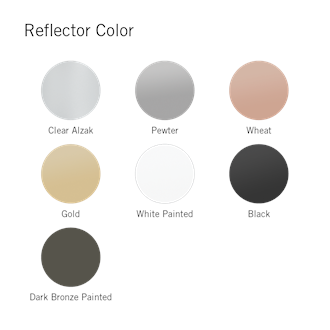

Color | Black, Bronze, Clear, Gold, Pewter, Wheat, White |
Mounting Type | Recessed |
Special Applications | Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail |
Function | Downlight |
Product Series | Incito |
Series | ICO4SQ |
Read More Read Less
Suggested Replacement Products
Spec Sheets
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
SPEC SHEET | ICO4SQ.pdf | Incito 4" Open Downlight | 5/6/2021 | View |
|
|
Create Submittal Spec Sheet
Photometry & Revit (BIM)
Description | Report | Design Tools |
|
|
---|---|---|---|---|
{{photometryItem.Catalog}} | Report |
|
|
Spectral Data Sheets
Guideline Specifications
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
Installation Instructions | CJ5200914 ICO4 Mudring Install.pdf | EVO/ICO 4" Flangeless Mud Ring | 2/10/2020 | View |
|
|
Installation Instructions | CJ5200915 ICO4 Housing install.pdf | ICO 4" Housing | 2/10/2020 | View |
|
|
Installation Instructions | CJ5200918 ICO4 SQ Trim Install.pdf | ICO 4" Trim | 2/10/2020 | View |
|
|
