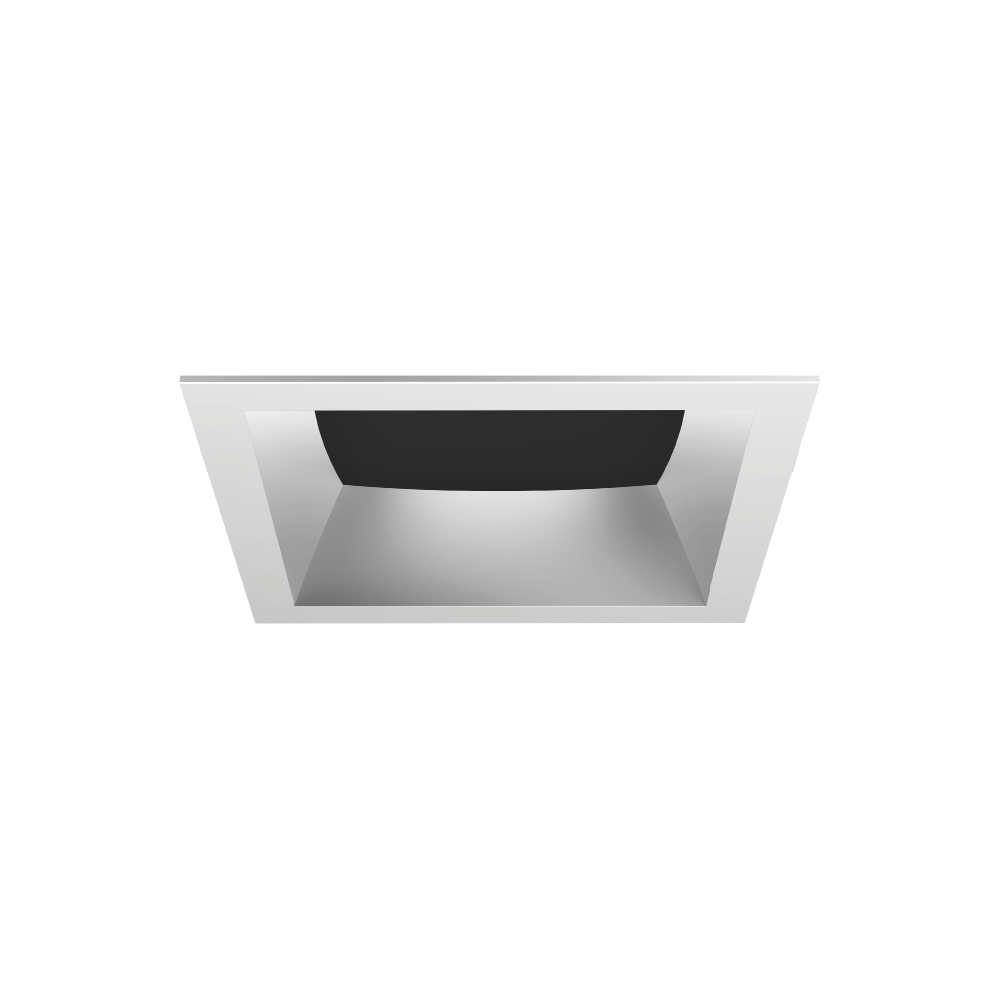

Incito™ 4" Square Adjustable

High Center Beam LED Adjustable

By Gotham Lighting

    Energy Star®Buy America(n)
  • Overview
  • Specifications
OPTICS

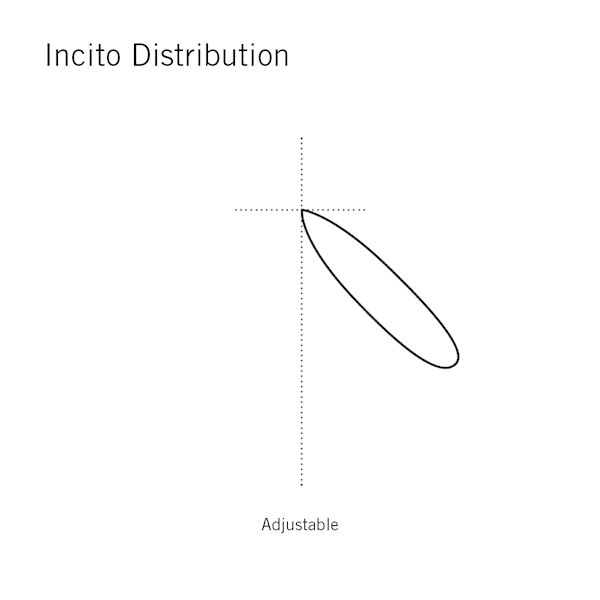

Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
  • Cutoff: 45°
  • Functions: Adjustable solution
  • Beam angles: Ranging from 10° to 50°

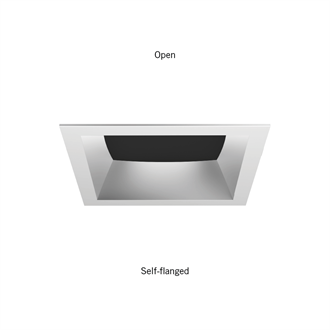

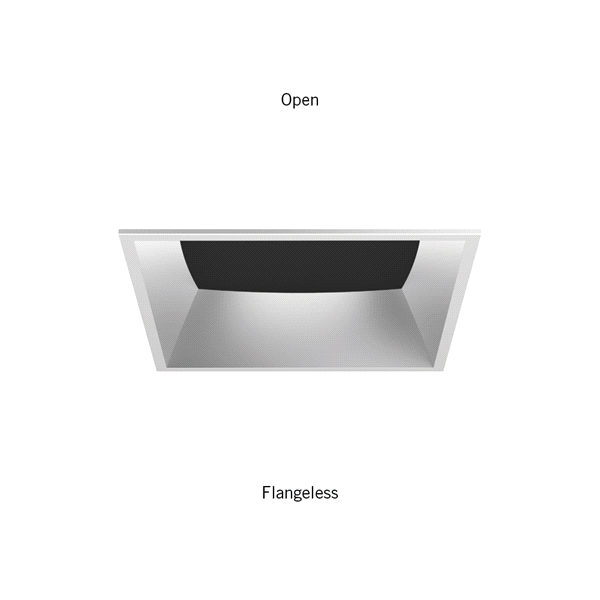

  • Trim options: Self-flanged or flangeless
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 500-5,000 LM
  • Listings: Energy Star, CSA, Wet Location, Buy American
  • Driver capabilities: Up to 9 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular and matte diffuse
  • Optics: Easy field-interchangeable optics
  • Trims: Interchangeable open trim
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 4 IN
Shape Square
Light Source LED - Static
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing Damp Location, IC
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 277, 347
Trim Style Angle-Cut, Open
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White

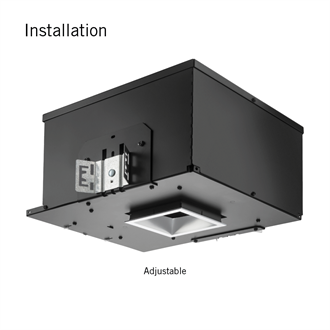

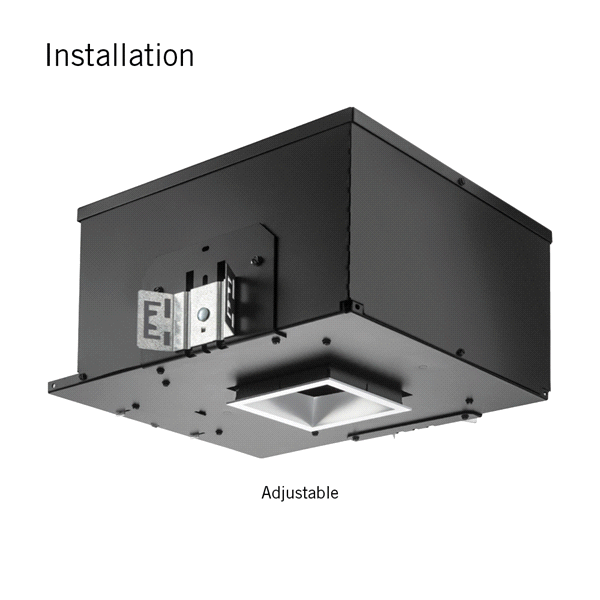

Mounting Type Recessed
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Adjustable
Product Series Incito
Series ICO4SQADJ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ICO4SQADJ.pdf Incito 4" Open Adjustable 4/14/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5200914 ICO4 Mudring Install.pdf EVO/ICO 4" Flangeless Mud Ring 2/10/2020 View
    Installation Instructions CJ5200926 ICO4 ADJ Housing Install.pdf ICO 4" Adjustable Housing 2/10/2020 View
    Installation Instructions CJ5200934 ICO4 SQ ADJ Trim Install.pdf ICO 4" Adjustable Trim 2/10/2020 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures EVO_vs_Incito Comparison Guide View
    Sell Sheet Incito 4" Sell Sheet Incito 4" Sell Sheet View
