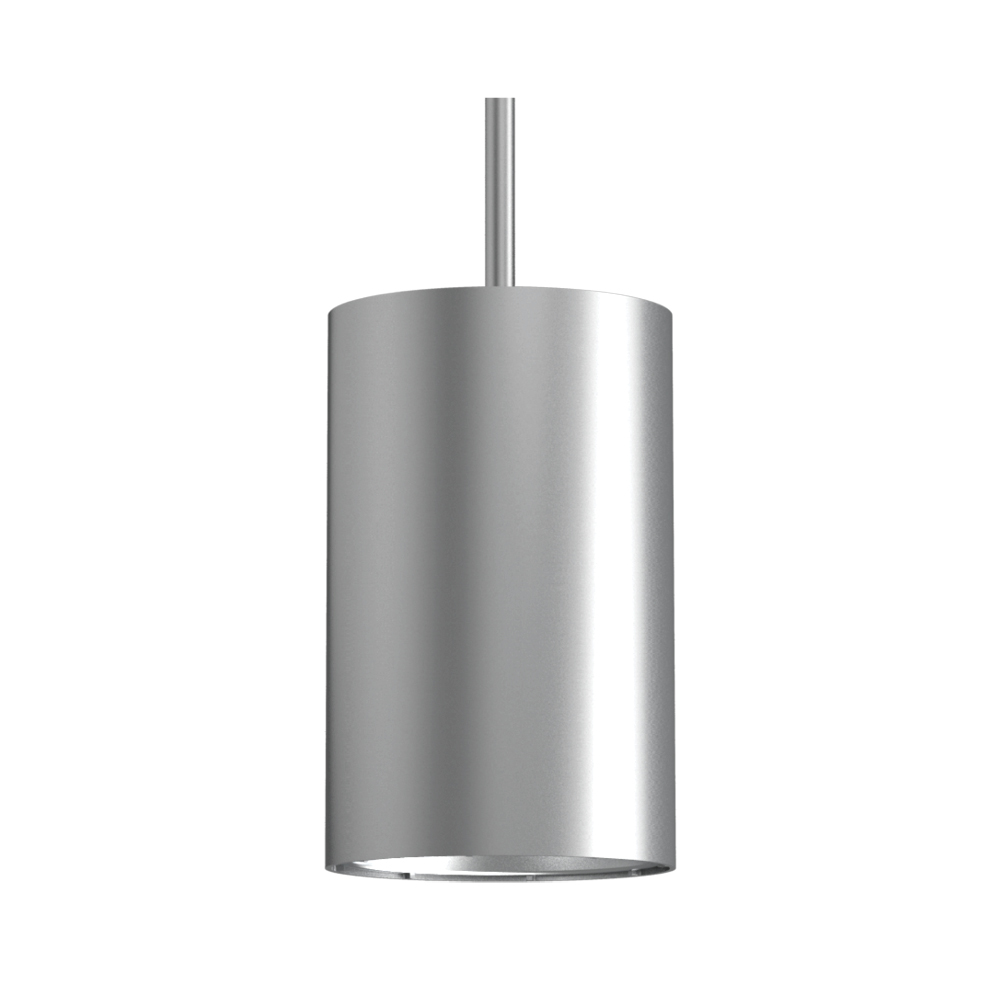

EVO® 6" Round Pendant Mount Cylinder

General Illumination LED Downlight & Wall Wash Cylinder
    WarmDimTunable WhiteEnergy Star®Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 1800 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 6000 LM, 8000 LM, 10,000 LM, 12,000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 90
Product Type Cylinder
Compliance Listing BAA and BABA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing Wet Location
Regulatory Listing CSA, UL
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Fixture Wattage 10.1, 10.7, 11.8, 12.4, 14.7, 15.7, 17.1, 20.6, 20.8, 22, 25.2, 26.3, 27.6, 3.25, 30.5, 31.2, 33.1, 35.5, 36.5, 40.5, 40.9, 41.7, 45.3, 47.1, 47.7, 48.8, 5.1, 50, 54, 59, 78, 8.66, 9.86
Voltage Rating 120, 120-277, 277, 347

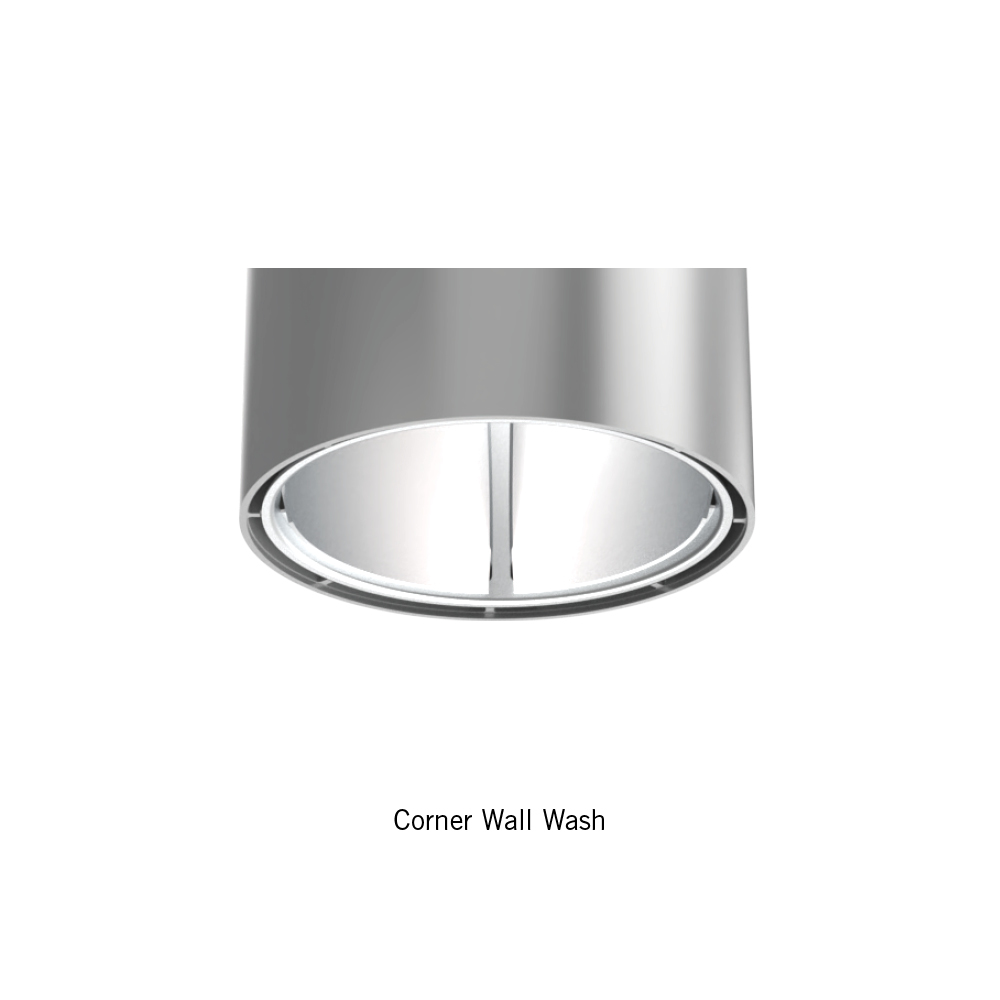

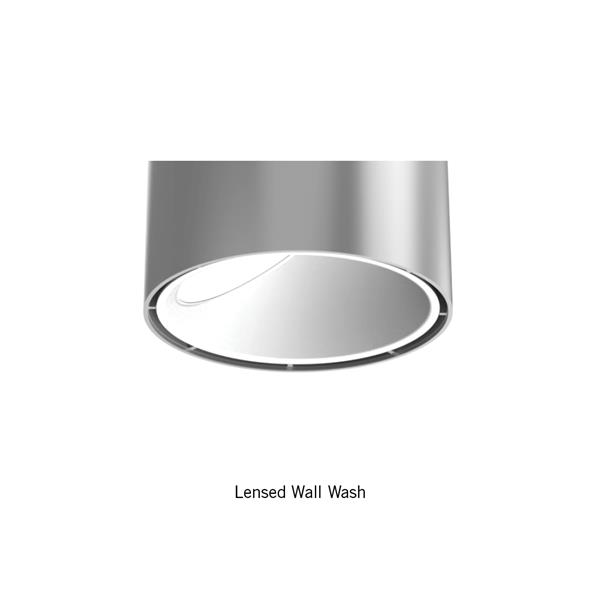

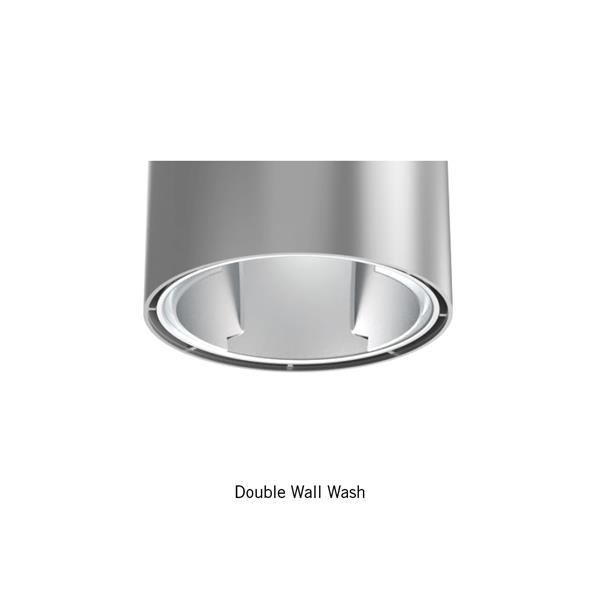

Trim Style Cone, Corner Wallwash, Double Wallwash, Lensed, Open, Single Wallwash
Color Beige, Black, Blue, Bronze, Clear, Gold, Gray, Green, Pewter, Red, Silver, Wheat, White

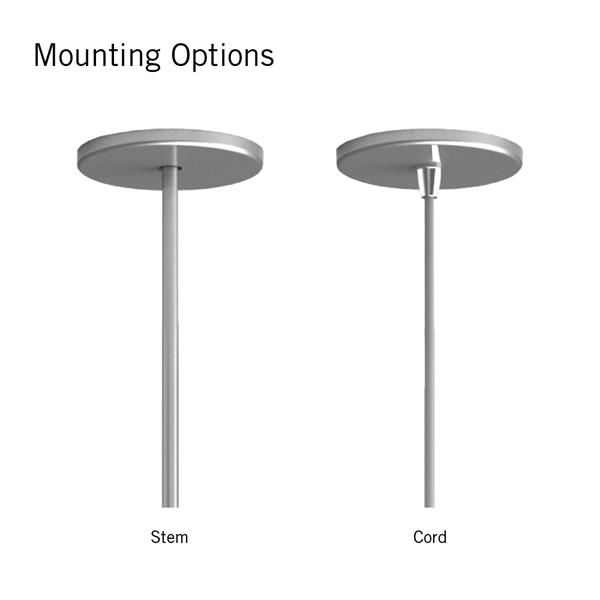

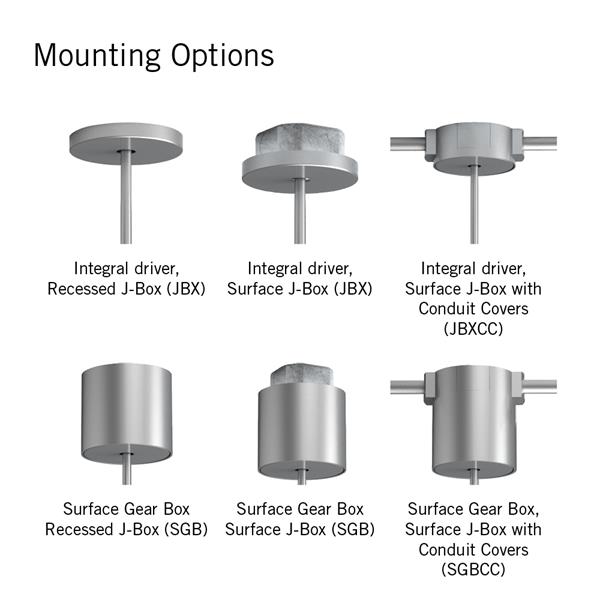

Mounting Type Pendant
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Special Applications
Function Downlight, Wall Wash
Product Series EVO
Series EVO6PC, EVO6PCWW, EVO6PCCWW, EVO6PCDWW, EVO6PCLW, EVO6CC

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet EVO6CC NTUNE.pdf EVO 6" Open Cord Mount Cylinder with nTune Tunable White & Warm Dimming 1/10/2023 View
    Spec Sheet EVO6CC.pdf EVO 6" Open Cord Mount Cylinder 10/18/2024 View
    Spec Sheet EVO6PC NTUNE.pdf EVO 6" Open Stem Mount Cylinder with nTune Tunable White & Warm Dimming 1/10/2023 View
    Spec Sheet EVO6PC.pdf EVO 6" Open Stem Mount Cylinder 10/18/2024 View
    Spec Sheet EVO6PCLW.pdf EVO 6" Lensed Wall Wash Stem Mount Cylinder 2/20/2024 View
    Spec Sheet EVO6PCLW-NTUNE.pdf EVO 6" Lensed Wall Wash Stem Mount Cylinder with nTune Tunable White & Warm Dimming 4/28/2021 View
    Spec Sheet EVO6PCWW.pdf EVO 6" Open, Corner & Double Wall Wash Stem Mount Cyliner 10/18/2024 View
    Spec Sheet EVO6PCWW-NTUNE.pdf EVO 6" Open, Corner & Double Wall Wash Stem Mount Cylinder with nTune Tunable White & Warm Dimming 11/1/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet Gotham Lighting EVO6 40K 80CRI.pdf EVO6 40K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 80CRI.pdf EVO6 35K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 90CRI.pdf EVO6 35K 90CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 40K 90CRI.pdf EVO6 40K 90CRI 5/29/2024 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 TUWH RHYR 90CRI.pdf EVO6 TUWH 90CRI 5/29/2024 View

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View

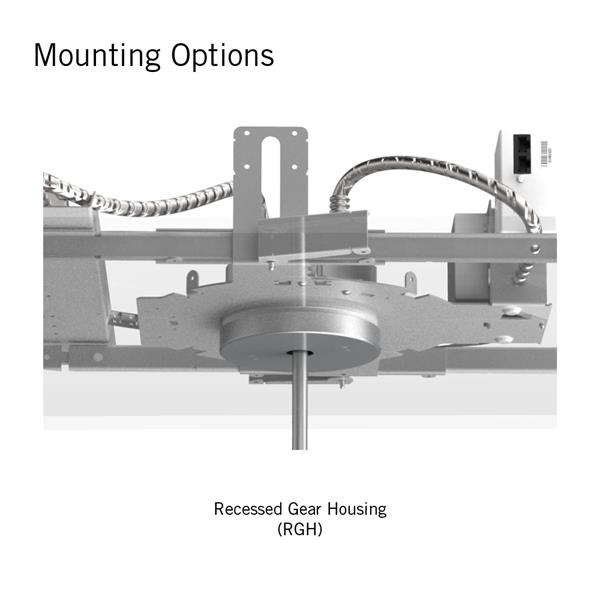

    Installation Instructions 912-00164-001 RGH Instruction.pdf EVO 4"/6", ICO 4" Cylinder with Recessed Gear Housing (RGH) 12/27/2023 View
    Installation Instructions 912-00368-001 REMOTE BATTERY SIDE CAR EVO_ICO 4-6IN CYL INSTALL.pdf EVO 4"/6", ICO 4" Cylinder with remote side car style battery pack 10/31/2022 View
    Installation Instructions 912-00368-001 REMOTE BATTERY SIDE CAR EVO_ICO 4-6IN CYL INSTALL_NOM.pdf EVO 4"/6", ICO 4" Cylinder with remote side car style battery pack - NOM 10/31/2022 View
    Installation Instructions 912-00379-001 INTEGRAL BATTERY EVO_ICO 4-6IN CYL INSTALL.pdf EVO 4"/6", ICO 4" Cylinder with integral battery pack & test switch 10/31/2022 View
    Installation Instructions 912-00379-001 INTEGRAL BATTERY EVO_ICO 4-6IN CYL INSTALL_NOM.pdf EVO 4"/6", ICO 4" Cylinder with integral battery pack & test switch - NOM 10/31/2022 View
    Installation Instructions CJ53520 EVO_ICO 4-6IN CYL STEM_JBX_JBXCC_INSTALL.pdf EVO 4"/6", ICO 4" Stem Mount Cylinder with Integral drivers and Recessed or Surface J-box 11/7/2024 View
    Installation Instructions CJ53523 EVO_ICO 4-6IN CYL DMX521_RDM.pdf EVO 4"/6", ICO 4" Cylinder with DMX/RDM 1/18/2021 View
    Installation Instructions CJ53531 EVO_ICO 4-6IN CYL CORD_JBX_JBXCC_INSTALL.pdf EVO 4"/6", ICO 4" Cord Mount Cylinder with Integral Driver and Recessed or Surface J-Box 8/9/2022 View
    Installation Instructions CJ53532 EVO4-6IN_ICO4 CYL STEM_SGB_SGBCC_INSTALL.pdf EVO 4"/6", ICO 4" Stem Mount Cylinder with Surface Gear Box and Recessed or Surface J-box 8/9/2022 View
    Installation Instructions CJ53533 EVO_ICO 4-6IN CYL CORD_SGB_SBGCC_INSTALL.pdf EVO 4"/6", ICO 4" Cord Mount Cylinder with Surface Gear Box and Recessed or Surface J-box 8/9/2022 View
    Installation Instructions CJ97039 EVO_ICO 4-6IN_WW TRIM_INSTALL_SUPPLEMENT.pdf EVO 4"/6" Open WallWash Cylinder Fixture Aiming 3/30/2020 View
    Installation Instructions CJ97040 EVO_ICO 4-6IN PC_LW TRIM_INSTALL_SUPPLEMENT.pdf EVO 4"/6", ICO 4" Lensed Wall Wash Stem Mount Cylinder Fixture Aiming 3/30/2020 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Gotham Cylinder Brochure_0421 EVO & Incito Cylinder Portfolio Brochure 9/25/2023 View
