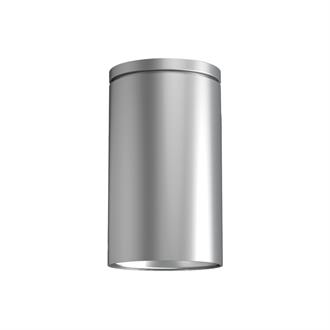

Incito™ 4" Round Surface Mount Cylinder

High Center Beam LED Downlight & Wall Wash Cylinder
    Energy Star®Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Static
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 90
Product Type Cylinder
Compliance Listing BAA and BABA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Fixture Wattage 14.3, 18.8, 24.3, 31.9, 33.6, 40.2, 47.1, 54, 6.52, 7.34, 9.48
Voltage Rating 120, 120-277, 277, 347
Trim Style Cone, Lensed, Open, Single Wallwash
Color Beige, Black, Blue, Bronze, Clear, Gold, Gray, Green, Pewter, Red, Silver, Wheat, White
Mounting Type Surface
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail

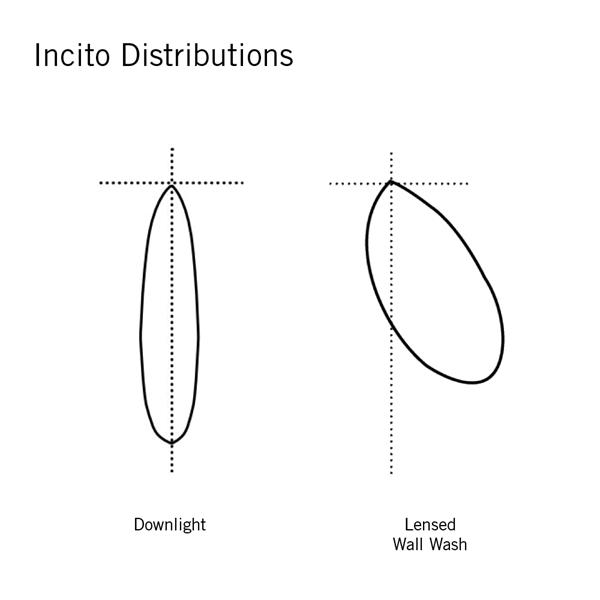

Function Downlight, Wall Wash
Product Series Incito
Series ICO4SC, ICO4SCLW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ICO4SC.pdf Incito 4" LED Round Cylinder with Surface Ceiling mount 11/12/2024 View
    Spec Sheet ICO4SCLW.pdf ICO 4" Lensed Wall Wash Surface Mount Cylinder 11/12/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00164-001 RGH Instruction.pdf EVO 4"/6", ICO 4" Cylinder with Recessed Gear Housing (RGH) 12/27/2023 View
    Installation Instructions 912-00368-001 REMOTE BATTERY SIDE CAR EVO_ICO 4-6IN CYL INSTALL_NOM.pdf EVO 4"/6", ICO 4" Cylinder with remote side car style battery pack - NOM 10/31/2022 View

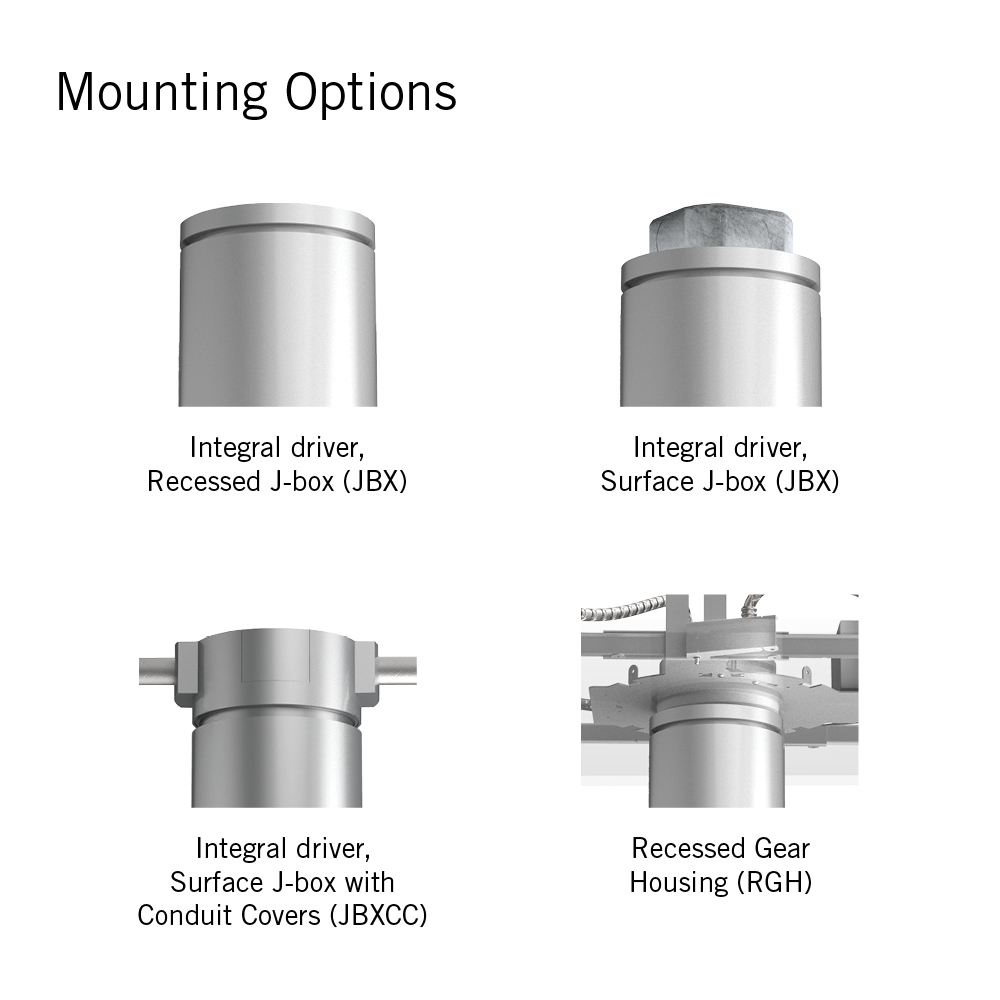

    Installation Instructions CJ53521 EVO_ICO 4-6IN CYL CEILING_JBX_JBXCC_INSTAL.pdf EVO 4"/6", ICO 4" Surface Mount Cylinder with Integral driver and Recess or Surface J-box 8/9/2022 View
    Installation Instructions CJ53523 EVO_ICO 4-6IN CYL DMX521_RDM.pdf EVO 4"/6", ICO 4" Cylinder with DMX/RDM 1/18/2021 View
    Installation Instructions CJ97038 EVO_ICO 4-6IN SC_LW TRIM_INSTALL_SUPPLEMENT.pdf EVO 4"/6", ICO 4" Lensed Wall Wash Surface Mount Cylinder Fixture Aiming 3/30/2020 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Gotham Cylinder Brochure_0421 EVO & Incito Cylinder Portfolio Brochure 9/25/2023 View
