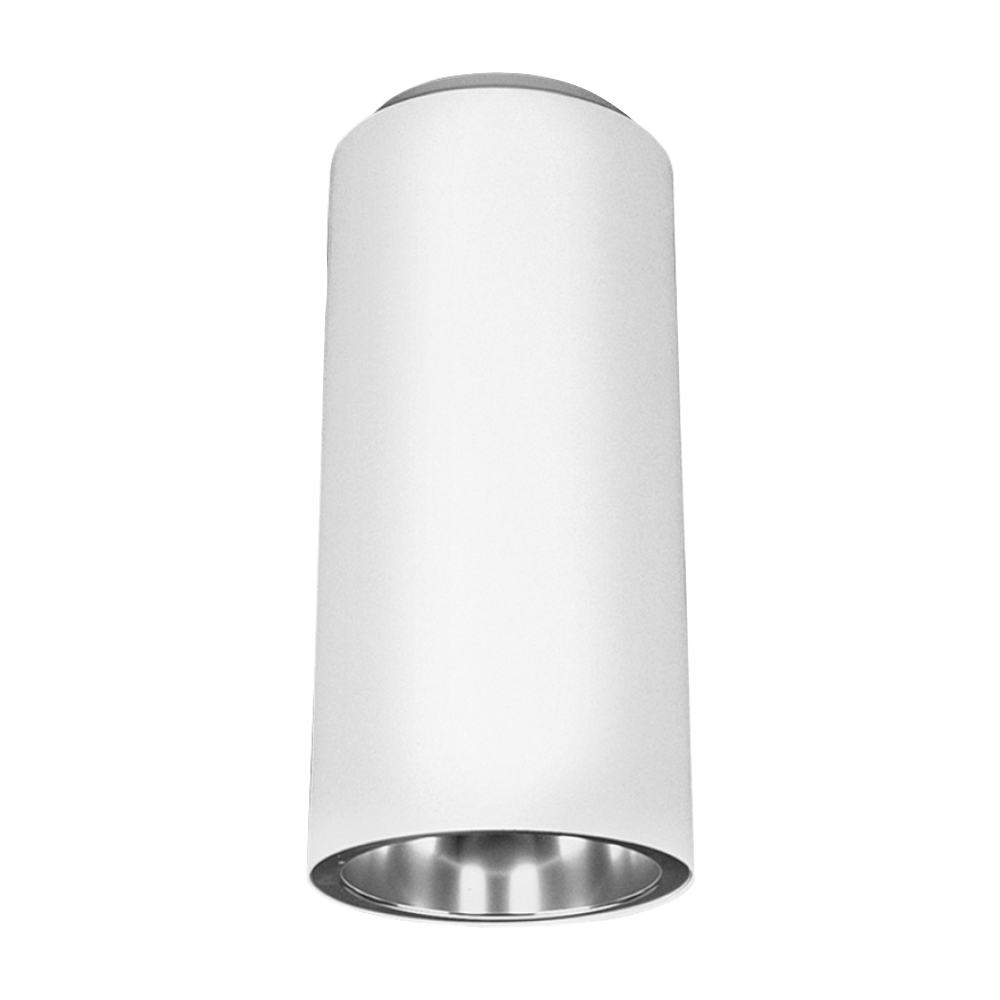

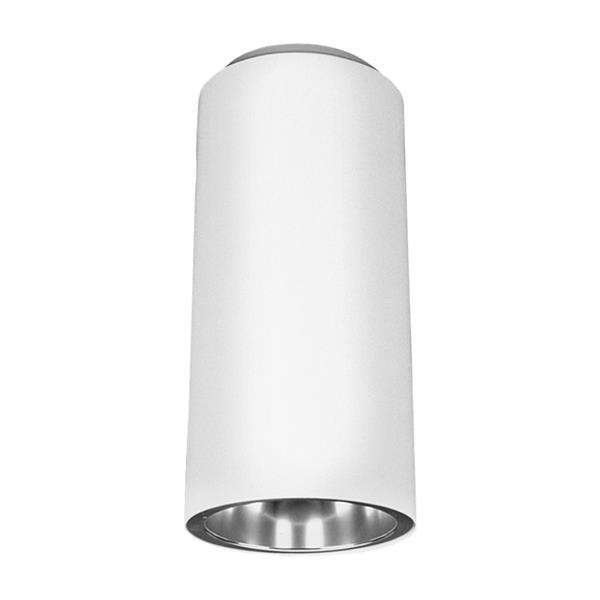

EVO® 8" Round Pendant Mount Cylinder

General Illumination LED Downlight Cylinder

By Gotham Lighting

    Low UGR
  • Overview
  • Specifications
OPTICS

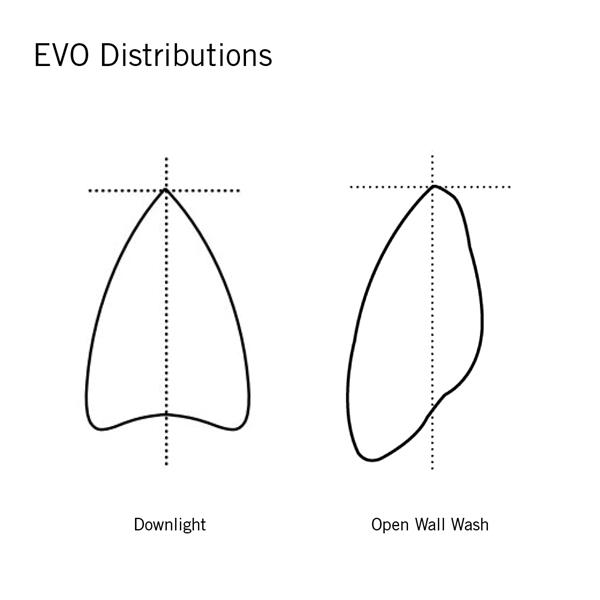

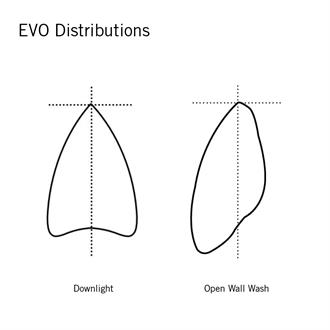

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Open wall wash solution
  • Beam angles: Very narrow, narrow, medium, medium wide, wide
  • Trim options: Cone
PERFORMANCE
Our high-performing cylinders provide the quality of light and consistency needed to efficiently create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-3,000 LM
  • Listings: Energy Star, CSA, Wet Location
  • Driver capabilities: Up to 9 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify cylinders, we offer an ample array of mounting types, trims, sizes, and colors allowing for a complete custom design.
  • Colors: 20 standard colors and full breath of RAL custom colors
  • Mounting: Stem suspension is suitable for indoor or outdoor applications and easy to modify with conduit entries at a diameter of 3/8 inch
  • Mounting: Cord suspension provides a tight and straight suspension, with a cord significantly smaller than most, and designed with no aircraft cable
Read More
Read Less
Aperture Size 8 IN
Shape Round
Light Source LED - Static
Lumens 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80
Product Type Cylinder
Compliance Listing Low UGR
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Voltage Rating 120, 120-277, 277
Trim Style Single Wallwash
Color Black, Blue, Bronze, Clear, Gold, Gray, Green, Ivory, Pewter, Red, Silver, Wheat, White
Mounting Type Surface
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Downlight
Product Series EVO
Series EVO8CYL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO8CYL.pdf EVO 8" Open Pendant, Surface, & Wall Mount Cylinder 4/27/2023 View
