Product Image

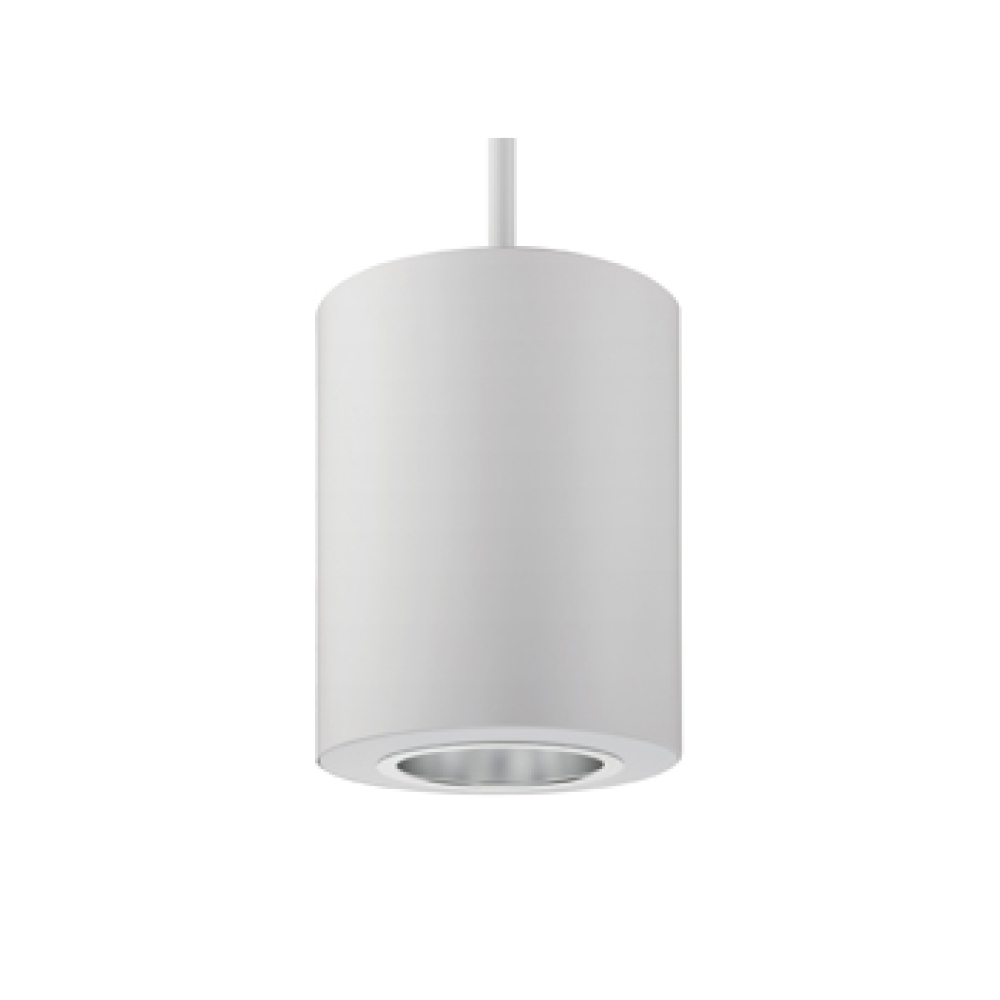

ICO6PC-1-Hero Image.jpg

Incito™ 6" Round Pendant Mount Cylinder

High Center Beam LED Downlight Cylinder

By Gotham Lighting

    Low UGR
  • Overview
  • Specifications
OPTICS
Incito™ high intensity distribution provides narrow field angles to create sharp contrast with crisp highlights and deep shadows for a dramatic layer of light.
  • Beam angles: Ranging from 20° to 70° and asymmetric distribution
  • Trim options: Cone
PERFORMANCE
Our high-performing cylinders provide the quality of light and consistency needed to efficiently create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 2,000-8,500 LM
  • Listings: Energy Star, CSA, Damp Location, Wet Location
  • Driver capabilities: Up to 5 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify cylinders, we offer an ample array of mounting types, trims, sizes, and colors allowing for a complete custom design.
  • Colors: 20 standard colors and full breath of RAL custom colors
  • Mounting: Stem suspension is suitable for indoor or outdoor applications and easy to modify with conduit entries at a diameter of 3/8 inch
  • Mounting: Cord suspension provides a tight and straight suspension, with a cord significantly smaller than most, and designed with no aircraft cable
Read More
Read Less
Aperture Size 6 IN
Shape Round
Light Source LED - Static
Lumens 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 5500 LM, 6000 LM, 6500 LM, 7000 LM, 7500 LM, 8000 LM, 8500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 90
Product Type Cylinder
Compliance Listing Low UGR
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, DMX
Voltage Rating 120, 120-277, 277
Trim Style Cone, Open
Color Black, Blue, Bronze, Clear, Gold, Gray, Green, Ivory, Pewter, Red, Silver, Wheat, White
Mounting Type Surface
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Downlight
Product Series Incito
Series ICOCYL

Read More Read Less
